Marin 2025 Lombard E1
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

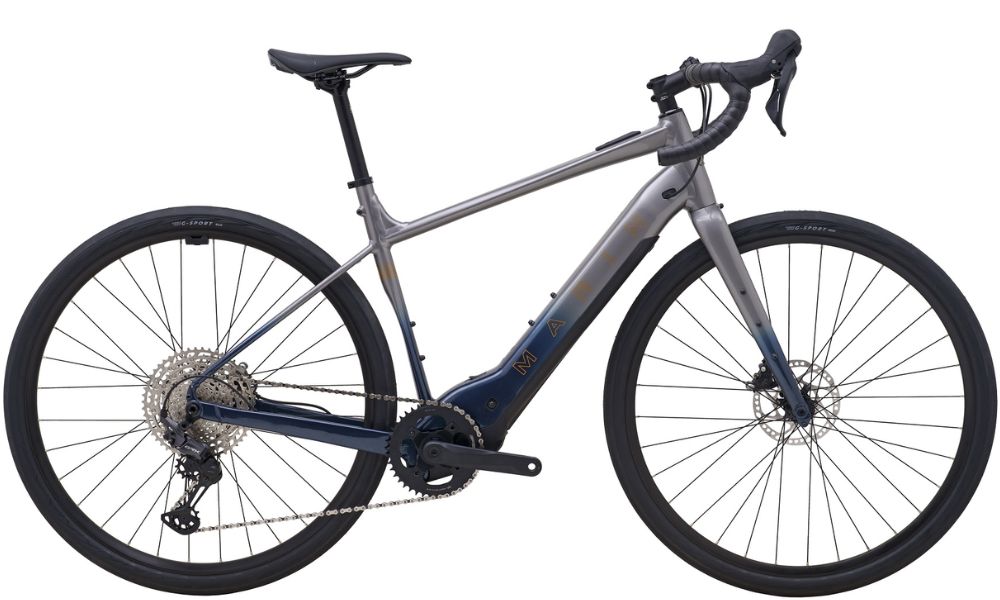

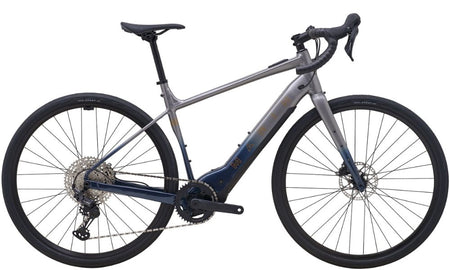

Marin 2025 Lombard E1
With a Bosch SX Drive Unit as the beating heart and the consistent and all-weather power of hydraulic disc brakes and reliable shifting components make the Lombard E1 ready for daily use on or off the tarmac.
High volume tires and the option to run a dropper seat post make the Lombard E a steadfast companion whether commuting daily in the city, or spinning for hours in the country.
Specifications
Marin 2026 Lombard E1
Frame
Size: S, M, L, XL
Colour: Blue Tan
Frame: Series 4 Beyond Road E, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount, Disc, Fender Eyelets
Shock:
Drivetrain
Crankset: Forged Alloy, 42T Steel Chainring
Pedals:
Chain: KMC E12S
Bottom Bracket:
Rear Derailleur: Shimano GRX RD-RX822, 12-speed, Clutch
Front Derailleur:
Shifter: Shimano GRX STRX610, 12-speed
Freewheel/Cassette: Shimano CSM6100, 10-51T
Braking System
Brakes: Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers: Shimano GRX STRX610
Wheels
Tyres: [F] [R] Vee Tire Co., G-Sport, 700x44, Tubeless Compatible
Wheels/Rims: [F] [R] Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
Hubs: [F] Forged Aluminum Alloy, 100x12mm, Disc, 32H [R] Forged Aluminum Alloy, 142x12mm, Disc, 32H
Other
Handlebar: Marin Butted Alloy, Compact 16º Flared Drop
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy, 27.2
Saddle: Marin Beyond Road Concept Elite
E-Bike
Drive Unit: Bosch SX Sprint, 250W, 55Nm, Class 3 (28mph, 45Km/h)
Battery: Bosch CompactTube 400, 400Wh
Display:
UI/Remote: Bosch MiniRemote, Bluetooth
Charger:
Geometry
Marin 2025 Lombard E1
| S | M | L | XL | |
|---|---|---|---|---|
| AStack | 564.7 | 583.5 | 607 | 639.9 |
| BReach | 385 | 405 | 415 | 425 |
| CHeadtube angle | 70° | 70° | 70° | 70° |
| DHeadtube length | 130 | 150 | 175 | 210 |
| ESeattube length | 460 | 485 | 505 | 530 |
| FSeattube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| GToptube effective | 552.2 | 577.8 | 594.8 | 614.5 |
| HBb height | 282 | 282 | 282 | 282 |
| IBb drop | 80 | 80 | 80 | 80 |
| JChainstay | 435 | 435 | 435 | 435 |
| KWheelbase | 1042.2 | 1069 | 1087.6 | 1109.6 |
| LStandover height | 686.7 | 702 | 714.5 | 741.7 |
| MFork offset | 50 | 50 | 50 | 50 |
| NSeatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| OHandlebar width | 440 | 460 | 460 | 480 |
| PStem length | 70 | 70 | 70 | 70 |
| QCrank length | 170 | 170 | 175 | 175 |
