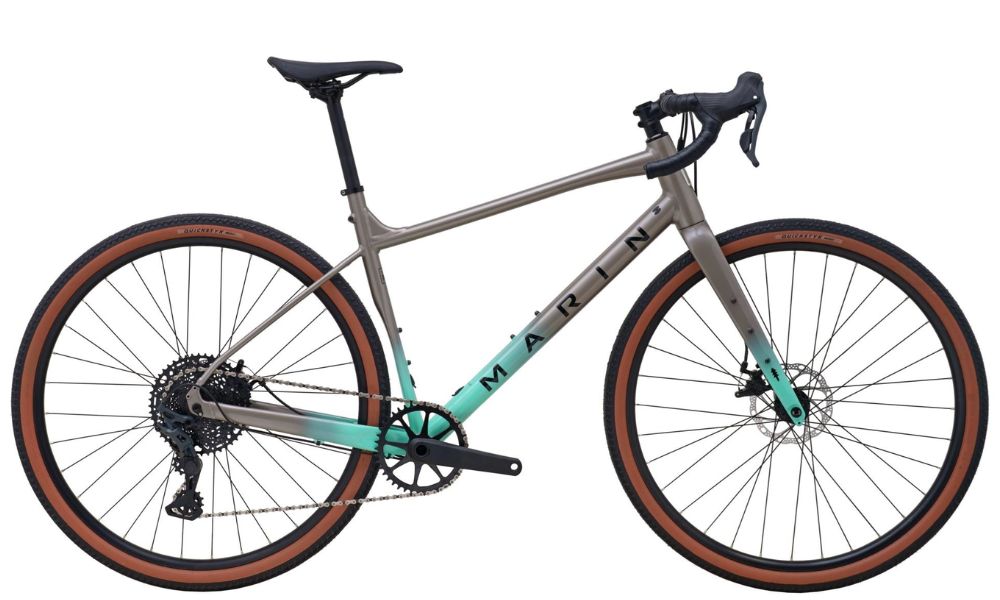

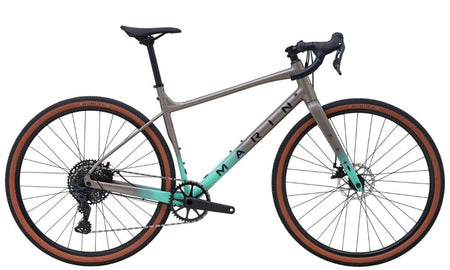

Marin 2025 Gestalt X10
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Marin 2025 Gestalt X10
ADVENTURE ON AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
GRAVEL RIDING
The Gestalt X is our hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do. Break off the fire road, down the singletrack and charge further and faster than ever before. All while keeping the versatility, challenge and fun of a bike with drop handlebars.
The Gestalt X is built with a longer-than-the-usual wheelbase, slack-like-your-mountain-bike head angle, low-slung frame, wide bars, short stem, big and chunky tires with room for up to 50mm on 700c or 54mm with a 650b wheelset.
The Gestalt X10 means extra fun at an extra awesome price. Pick one up and you’ll be riding our MTB-inspired, Series 3 aluminum Gestalt X frame and a whole heap of tough and capable kit, including a 10-speed microSHIFT groupset, cushy and grippy 45mm wide Vee Tire Co tires, Tektro disc brakes and plenty of kick-ass Marin components.
Specifications
Marin 2025 Gestalt X10
Frame
Size: S, M, L
Colour: Silver Cyan
Frame: Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Shock:
Drivetrain
Crankset: Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T
Pedals:
Chain: KMC X10
Bottom Bracket: External Sealed Cartridge Bearings
Rear Derailleur: microSHIFT Advent X 10-Speed Wide-Range
Front Derailleur:
Derailleur Shifter: microSHIFT Advent X 10-Speed
Freewheel/Cassette: SunRace, 10-Speed, 11-51T
Braking System
Brakes: [F] and [R] Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
Brake Levers: MicroSHIFT Advent X
Wheels
Tyres: [F] and [R] Vee Tire Co., Rocket Man, 700x45, Tubeless Compatible
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific
Hubs: [F] and [R] Forged Aluminum Alloy, Disc, 32H
Other
Handlebar: Marin Butted Alloy, Compact 16Âş Flared Drop
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Beyond Road Concept
Geomerty
Marin 2025 Gestalt X10
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 547.6 | 566 | 589.1 | 621.5 |
| Reach | 400 | 420 | 440 | 460 |
| Headtube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
| Headtube Length | 130 | 150 | 175 | 210 |
| Seattube Angle | 75° | 74° | 74° | 74° |
| Seattube Length | 460 | 485 | 505 | 530 |
| Toptube Effective | 546.7 | 582.3 | 608.9 | 638.2 |
| BB Height | 282.5 | 282.5 | 282.5 | 282.5 |
| BB Drop | 80 | 80 | 80 | 80 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1065.2 | 1092.8 | 1122.4 | 1155.6 |
| Standover Height | 678.6 | 687.7 | 708.6 | 734.5 |
| Fork Offset | 50 | 50 | 50 | 50 |
All lengths in millimeters
