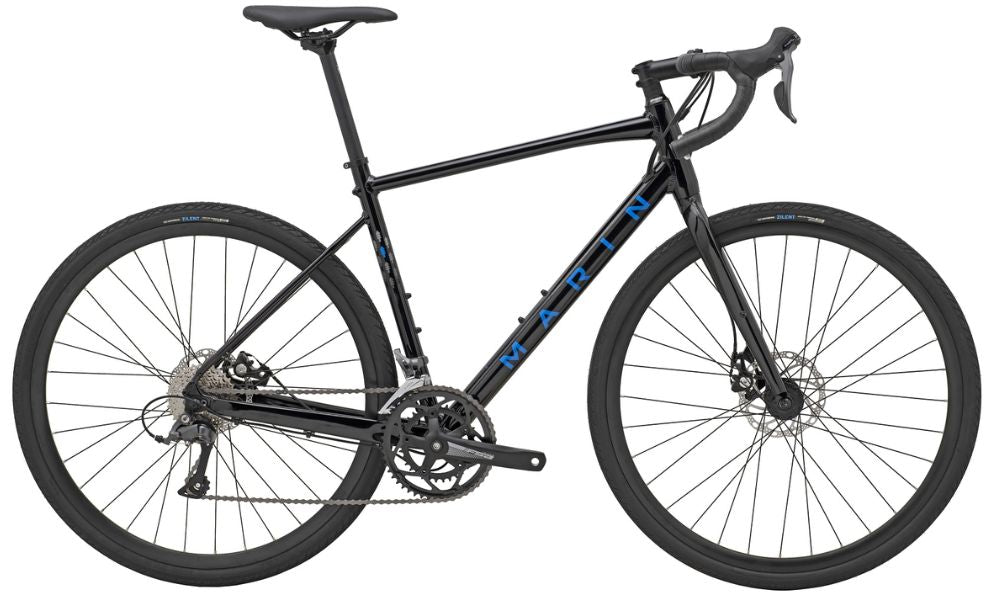

Marin 2025 Gestalt

ADVENTURE ROAD RIDING

LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT

The Marin Gestalt takes you Beyond Road.

Tarmac and trail, rough roads and muddy commutes, bikepacking, touring and adventure. Daily trips and weekend escapes are all within the Gestalt’s wheelhouse, with no stopping when the asphalt turns to dirt.

Our most affordable Gestalt, we’ve taken our Series 2 aluminum frame and created a killer value all-terrain explorer that won’t stretch your budget. Aluminum straight-blade fork, WTB Exposure 36mm wide tires, Tektro mechanical disc brakes, Shimano Claris 2x8-speed groupset and plenty of quality Marin components all add up to bags of value and heaps of fun.

Specifications

Marin 2025 Gestalt

Frame

Size: 50, 52, 54, 56, 58
Colour: Black
Frame: Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts
Fork: 6061 Aluminum, Straight-Blade, Post-Mount Disc
Shock:

Drivetrain

Crankset: FSA Tempo Compact, 50/34T
Pedals:
Chain: KMC Z8
Bottom Bracket: Sealed Bearing Square Taper
Rear Derailleur: Shimano Claris 8-Speed
Front Derailleur: Shimano Claris
Derailleur Shifter: Shimano Claris 2x8-Speed
Freewheel/Cassette: SunRace 8-Speed, 11-32T

Braking System

Brakes: [F] and [R] Tektro MD-C400 Road Mechanical, 160mm Rotor
Brake Levers: Shimano w/ Integrated Shifters

Wheels

Tyres: [F] and [R] WTB Exposure Comp 700x36
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific
Hubs: [F] and [R] Forged Aluminum Alloy, 6-Bolt Disc, 32H

Other

Handlebar: Marin Butted Alloy, Compact 12Âş Flared Drop
Stem: Marin 3D Forged Alloy
Seat Post: Marin Alloy, 27.2mm
Saddle: Marin Beyond Road Concept

Geometry

Marin 2025 Gestalt

Gestalt geometry diagram
50 52 54 56 58 60
Stack 552 568 582 601 620 641
Reach 367 372 377 387 402 404
Headtube Angle 71° 71.5° 71.5° 71.5° 71.5° 71.5°
Headtube Length 120 135 150 170 190 210
Seattube Angle 74.5° 74° 73.5° 73.5° 73.5° 73°
Seattube Length 460 480 500 520 540 560
Toptube Effective 520 535 550 565 585 600
BB Height 276 276 276 276 276 276
BB Drop 78 78 78 78 78 78
Chainstay 432 432 432 432 432 432
Wheelbase 1008 1014 1024 1040 1060 1070
Standover Height 714 732 755 775 794 814
Fork Offset 50 50 50 50 50 50
Seatpost Diameter 27.2 27.2 27.2 27.2 27.2 27.2
Handlebar Width 420 420 440 440 460 460
Stem Length 70 70 90 90 110 110
Crank Length 170 170 175 175 175 175

All lengths in millimeters
