Marin 2025 Alpine Trail XR AXS
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

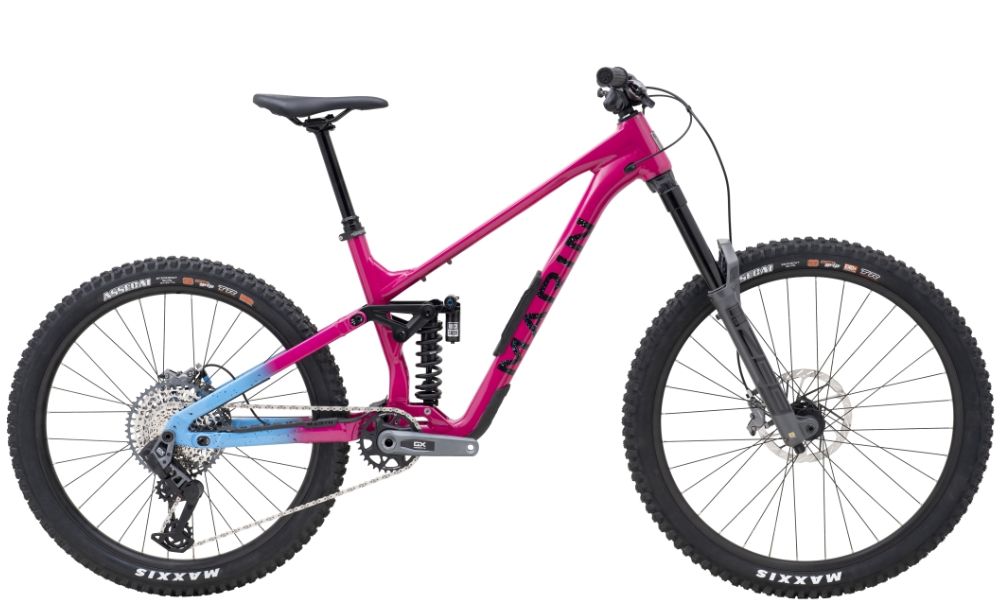

Marin 2025 Alpine Trail XR AXS
The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.
Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.
"XR" = "Xtra Rad" here at Marin, and we pulled out all the stops with the XR AXS take on the Alpine Trail. Not only did we grace the bike with Ultimate-level RockShox suspension, but took the drivetrain up a notch with SRAM's GX Eagle AXS wireless 12-speed drivetrain. SRAM's Code Bronze brakes provide tenacious stopping power with their 4-piston calipers and 203mm rotors.
Specifications
Marin 2025 Alpine Trail XR AXS
Frame
Colour: Gloss Magenta/Blue/Black
Frame: All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Boost Thru- Axle, 73mm Threaded BB w
Fork: RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
Shock: RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, Spring Rates S/M: 350lbs, L/XL:400lbs
Drivetrain
Crankset: SRAM GX Eagle, 32T, 55MM CL, 170MM Length
Chain: SRAM GX Eagle T-Type
Bottom Bracket: SRAM DUB MTB 73
Rear Derailleur: SRAM GX Eagle AXS T-Type
Front Derailleur:
Derailleur Shifter: SRAM AXS POD MMX
Freewheel/Cassette: SRAM GX 1275 T-Type 10-52T
Braking System
Brakes: [F] SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor [R] SRAM Code Bronze 4-Piston Hydraulic, HSC 200mm Rotor
Brake Levers: SRAM Code Bronze Stealth Hydraulic
Wheels
Tyres: [F] Maxxis Assegai MAXX GRIP 29x2.5 EXO+ [R] Maxxis Assegai MAXX GRIP 27.5x2.5" DoubleDown, Tubeless compatible
Wheels/Rims: Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Hubs: [F] Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h [R] Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
Other
Handlebar: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Stem: Marin CNC, 35mm Length, 35mm Bar Bore
Saddle: Marin Speed Concept
Geometry
Marin Alpine Trail XR AXS
| S | M | L | XL | |
| STACK | 620.08 | 633.51 | 642.6 | 646.93 |
| REACH | 430 | 460 | 490 | 520 |
| HEADTUBE ANGLE | 63.5° | 63.5° | 63.5° | 63.5° |
| HEADTUBE LENGTH | 100 | 115 | 125 | 130 |
| TOPTUBE EFFECTIVE | 79.2° | 79° | 78.8° | 78.6° |
| SEATTUBE ANGLE | 400 | 420 | 430 | 460 |
| SEATTUBE LENGTH | 556 | 592 | 626 | 659 |
| BB HEIGHT | 352 | 352 | 352 | 352 |
| BB DROP (REAR/FRONT) | 7/24 | 7/24 | 7/24 | 7/24 |
| CHAINSTAY | 435 | 435 | 435 | 435 |
| WHEELBASE | 1211.42 | 1248.11 | 1282.57 | 1317.8 |
| STANDOVER HEIGHT | 683.32 | 68 9.88 | 695.6 | 698.13 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
