Marin 2025 Alcatraz Jr 24
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

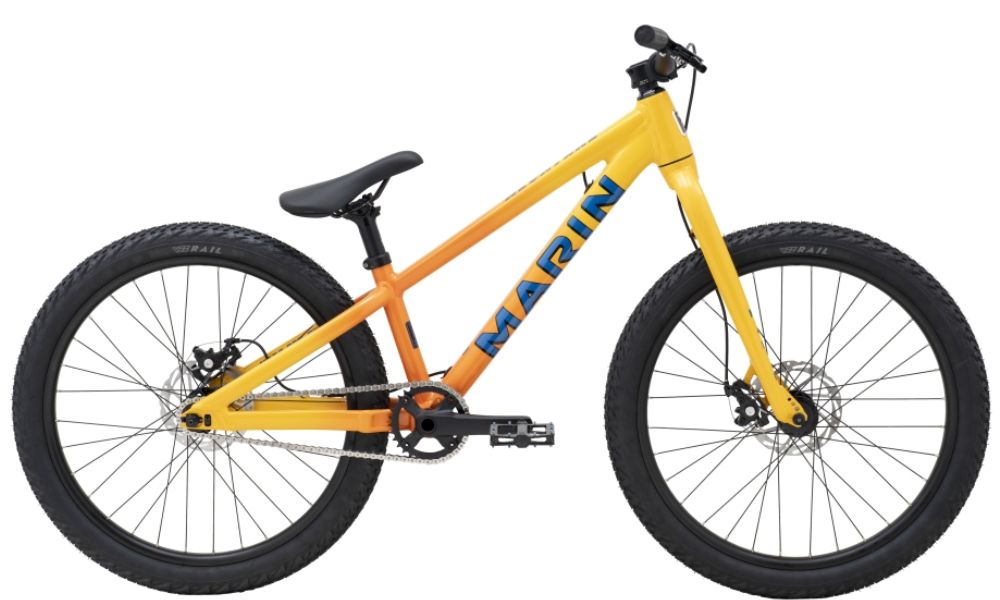

Marin 2025 Alcatraz Jr 24
We've taken the Alcatraz 1 and scaled it down for smaller riders. Built upon the same tubing as the larger models, it features a 360mm reach, 69° headtube angle, and 72° seattube angle, with 369mm chainstays. A suspension-corrected rigid CrMo fork is designed to handle rough-and-rowdy riding, and a simple and stout single-speed drivetrain and Tektro mechanical disc brakes ensure a fun and safe ride.
Specifications
Marin 2025 Alcatraz Jr 24
Frame
Colour: Orange Yellow FadeFrame: Series 3 6061 Aluminum, 24” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs
Fork: Marin Series 2 CroMo 24", Suspension Corrected, 100x9mm Dropouts
Shock:
Drivetrain
Crankset: Marin Forged Alloy, Alloy 32T DM Chainring, 155mm LengthChain: KMC HL-1
Bottom Bracket: Sealed Cartridge Bearings, Square Taper
Rear Derailleur:
Front Derailleur:
Derailleur Shifter:
Freewheel/Cassette: 14T Single Speed Cog
Braking System
Brakes: [F] and [R] Tektro MD-M280 Mechanical Disc 160mm RotorBrake Levers: Tektro CL-330TS Alloy
Wheels
Tyres: [F] and [R] Vee Tire, Rail 24x2.25”, LSG Compound, Wire BeadWheels/Rims: Marin Custom Extrusion, 27mm Inner, Pinned Joint
Hubs: [F] Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing [R] Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
Other
Handlebar: Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 700mm Width, 4º Up, 9º BackStem: Marin 3D Forged Alloy, 31.8mm clamp, 35mm extension
Saddle: Marin DJ Saddle
Seat Post: Marin Alloy, 30.9mm
