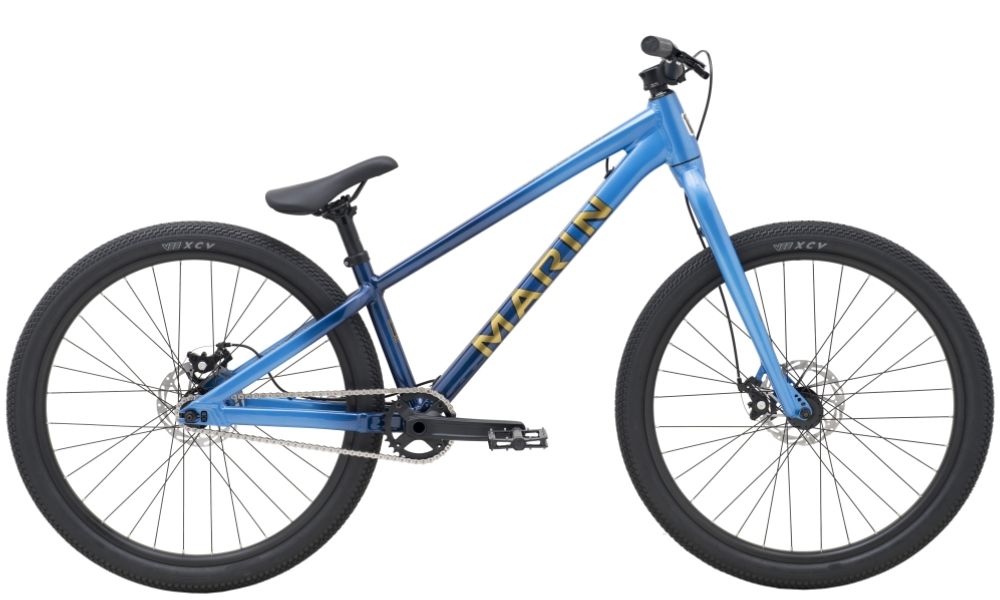

Marin 2025 Alcatraz 1

Marin 2025 Alcatraz 1

The Alcatraz 1 allows the rider to follow in Matt Jones’ footsteps to build and personalize the best dirt jump bike possible. At home boosting your local 6-pack, ripping up the pump track, or hitting the local skate park the Alcatraz has what you need to take care of business.

The Series 3 aluminum frame is built for the hard knocks and is stiff enough for lightning-fast acceleration and tough enough for the heavy hits. Short stays keep manuals easy and ambidextrous cable routing means you can run your brake on the left or right of the bars. There’s a suspension-corrected CrMo fork, front and rear Tektro disc brakes, Vee Tire rubber and plenty of bombproof Marin components. Best of all, it’s available in two frame sizes, regular and long.

Specifications

Marin 2025 Alcatraz 1

Frame

Colour: Blue Fade
Frame: Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs
Fork: Marin Series 2 CroMo 26", Suspension Corrected, 100x9mm Dropouts
Shock:

Drivetrain

Crankset: Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD
Chain: KMC HL-1
Bottom Bracket: External Sealed Cartridge Bearings
Rear Derailleur:
Front Derailleur:
Derailleur Shifter:
Freewheel/Cassette: 14T Single Speed Cog

Braking System

Brakes: [F] [R] Tektro MD-M280 Mechanical Disc 160mm Rotor
Brake Levers: Tektro CL-330TS Alloy

Wheels

Tyres: [F] and [R] Vee Tire Co. XCV 26x2.25”, LSG Compound, Wire Bead
Wheels/Rims: Marin Custom Extrusion, 27mm Inner, Pinned Joint
Hubs: [F] Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing [R] Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H

Other

Handlebar: Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 750mm Width, 4º Up, 9º Back
Stem: Marin 3D Forged Alloy, 31.8mm clamp, 40mm extension
Saddle: Marin DJ Saddle
Seat Post: Marin Alloy, 30.9mm

Geomerty

Marin 2025 Alcatraz 1
