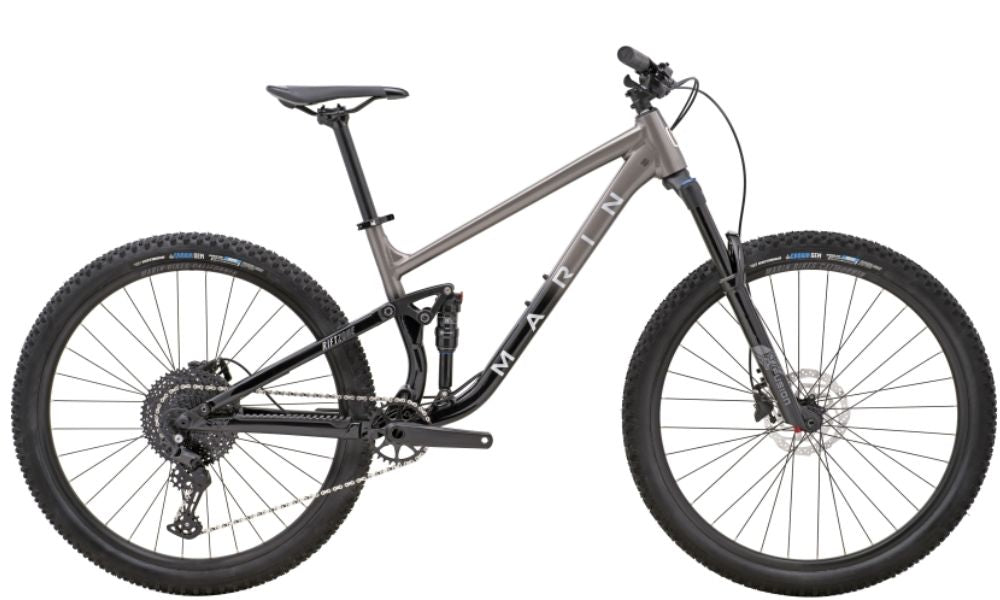

Marin 2023 Rift Zone 1
Couldn't load pickup availability
Marin 2023 Rift Zone 1
Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.
The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
The Marin Rift Zone 29 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of our favorite Marin components.
Specifications
Marin 2023 Rift Zone 1
Frame
Colour: Charcoal Black
Frame: All New Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Fork: X-Fusion Slide Boost RC, 29", 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
Shock: X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
Drivetrain
Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Chain: KMC X-11 Silver and Black
Bottom Bracket: External Sealed Cartridge Bearing
Rear Derailleur: Shimano Deore, 11-Speed, SGS
Front Derailleur:
Derailleur Shifter: Shimano Deore, 11-Speed, SL-5100R
Freewheel/Cassette: Sunrace, 11-Speed, 11-51T, ED Black
Braking System
Brakes: [F] and [R] Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brake Levers: Shimano BL-MT201
Wheels
Tyres: [F] and [R] Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready
Wheels/Rims: [F] and [R] Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hubs: [F] Shimano HF-MT400B, 110x15mm, Centerlock [R] Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
Other
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem: Marin 3D Forged Alloy, 35mm
Saddle: Marin Speed Concept
Seat Post: Marin Alloy, 30.9mm
Geometry
Marin 2025 Rift Zone 1
| S | M | L | XL | |
| STACK | 623.6 | 628.2 | 637.3 | 641.8 |
| REACH | 435 | 460 | 485 | 515 |
| HEADTUBE ANGLE | 65.5° | 65.5° | 65.5° | 65.5° |
| HEADTUBE LENGTH | 110 | 115 | 125 | 130 |
| SEATTUBE ANGLE | 77° | 77° | 77° | 77° |
| SEATTUBE LENGTH | 390 | 400 | 425 | 430 |
| TOPTUBE EFFECTIVE | 579 | 605 | 632.1 | 663.2 |
| BB HEIGHT | 343 | 343 | 343 | 343 |
| BB DROP | 35 | 35 | 35 | 35 |
| CHAINSTAY | 430 | 430 | 430 | 430 |
| WHEELBASE | 1170 | 1205.1 | 1234.4 | 1266.3 |
| STANDOVER HEIGHT | 690.2 | 691.2 | 701.7 | 700.5 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
