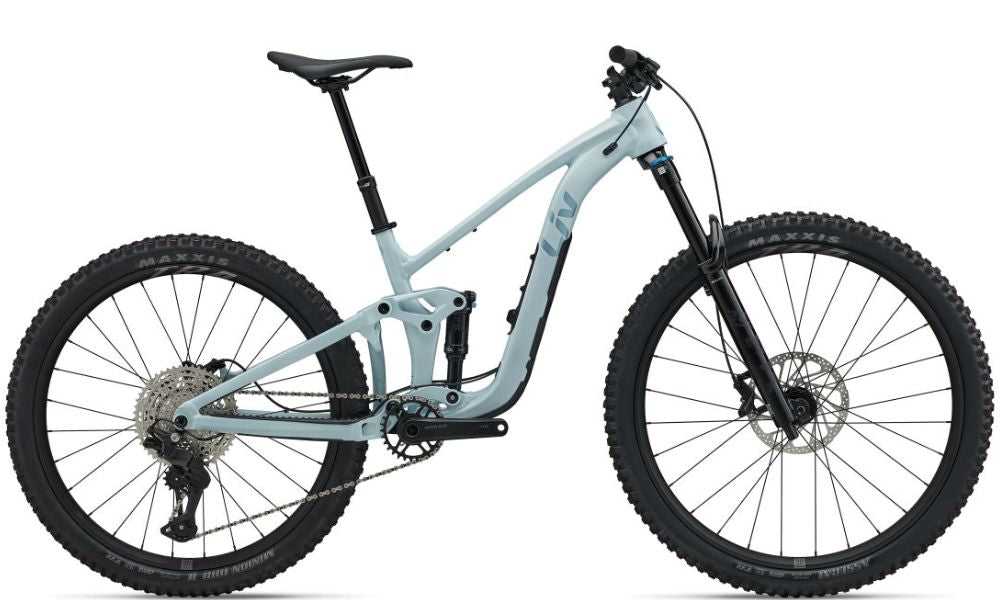

Liv 2027 Intrigue X 2

Liv 2027 Intrigue X 2

The exceptionally versatile Intrigue X was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X delivers extra performance and fun.

Performance Mid Travel Trail

Constructed with lightweight and durable ALUXX SL-grade aluminum, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.

Adjustable Frame Geometry

For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only

Best of Both Wheels

Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L.

Specifications

Liv 2027 Intrigue X 2

Frame

Size: XS, S, and M
Colour: Morning Haze
Frame: ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro Suspension, 12x148mm thru-axle, flip chip – Maestro 3, flip chip – headset, integrated down tube storage, under-top tube storage mounts
Fork: Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset
Shock: Fox Float Performance, 185x52.5, custom tuned for Liv, recommended sag 30%

Drivetrain

Crankset: Praxis Cadet HD M24 Boost, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm
Pedals:
Chain: KMC X12
Bottom Bracket: Praxis, press fit
Rear Derailleur: Shimano Deore, Shadow +
Front Derailleur:
Derailleur Shifter: Shimano Deore, 1x12
Freewheel/Cassette: Shimano Deore 6200, 10x51

Braking System

Brakes: TRP EVO Comp, hydraulic, TRP [F] 203mm, [R] 180mm
Brake Levers: TRP EVO Comp

Wheels

Tyres: Size XS, S, M and L, [F]: Maxxis Assegai 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Minion DHR II 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Minion DHR II 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Wheels/Rims: Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, MicroSpline driver body

Other

Handlebar: Giant Contact TR35, 20mm rise, alloy XS: 760mm, S: 760mm, M: 760mm, L: 780mm
Stem: Giant Contact SL 35 XS: 40mm, S: 50mm, M: 50mm, L: 50mm
Seat Post: Giant Contact Switch AT dropper, remote XS: 140-170mm travel / 30.9 x 470mm S: 140-170mm travel / 30.9 x 470mm M: 170-200mm travel / 30.9 x 530mm L: 170-200mm travel / 30.9 x 530mm
Saddle: Liv Sylvia

Geometry

Liv 2027 Intrigue X 2
