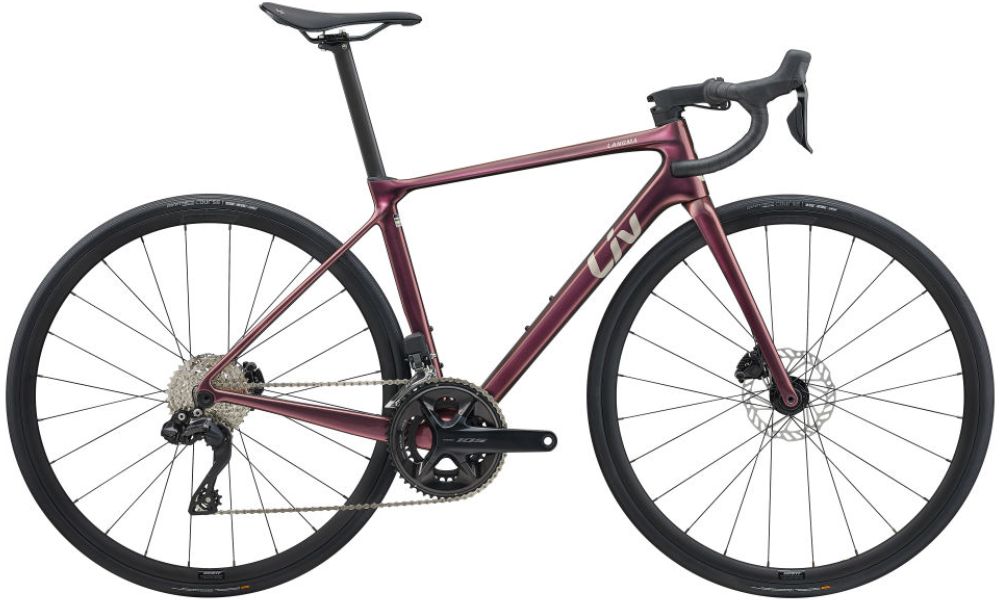

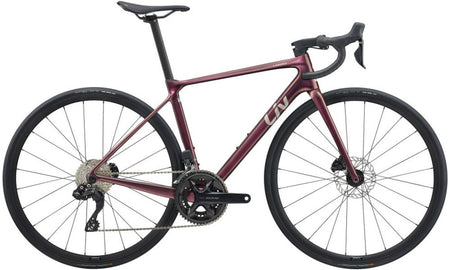

Liv 2025 Langma Advanced 1-PC
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Liv 2025 Langma Advanced 1-PC
It’s Langma Season
The official bike of road riding season, the Langma Advanced was designed to climb mountains and leaderboards. The re-engineered frameset and components are seamlessly integrated for effortless ascents and fearless descents. Streamlined aerodynamics round out this all-rounder, inspiring you to push limits all day long.
QOM-LEVEL EFFICIENCY
The re-engineered frameset and integrated components yield efficient power transfer for quick bursts of speed and sustained climbing prowess.
LIMIT-PUSHING CONTROL
Up to 33mm tire clearance means you’re ready for any road, from the freshly-poured to the weather-beaten, without compromising handling. The flared handlebar injects control and confidence into those explosive sprints and bomber descents.
GAP-WIDENING AERO
With truncated ellipse tube shapes and a new internal cable routing design, you’ll reduce drag, pick up speed, and watch the scenery fly by.
Specifications
Liv 2025 Langma Advanced 1-PC
Frame
Colour: Mechanic Rose
Frame:Advanced-Grade Composite, 12x142mm thru-axle, disc
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc
Shock: NA
Drivetrain
Crankset: Shimano 105, 36/52 XS:165mm, S:170mm, M:170mm, L:172.5mm
Pedals: NA
Chain: KMC X12
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano 105 Di2
Front Derailleur: Shimano 105 Di2
Derailleur Shifter: Shimano 105 Di2
Freewheel/Cassette: Shimano 105, 12-speed, 11x34
Braking System
Brakes: Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
Brake Levers: Shimano 105 Di2
Wheels
Tyres: Giant Course 1, tubeless, 700x25c (28mm), folding
Wheels/Rims: Giant P-R2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Other
Handlebar: Liv Contact XS:36cm, S:38cm, M:40cm, L:42cm
Stem: Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, L:110mm
Saddle: Liv Approach
Seat Post: Giant Variant, composite, -5/+15mm offset
Geometry
Liv 2025 Langma Advanced 1-PC
-
- XXS
-
145 cm
157 cm
-
- XS
-
152 cm 163 cm
-
- S
-
158 cm 169 cm
-
- M
-
164 cm 176 cm
-
- L
-
170 cm 183 cm
| XXS | XS | S | M | L | ||
| A | Seat Tube Length (MM) | 390 | 420 | 450 | 480 | 510 |
| B | Seat Tube Angle | 75.0° | 75.0° | 74.5° | 74.0° | 73.5° |
| C | Top Tube Length (MM) | 498 | 508 | 524 | 540 | 555 |
| D | Head Tube Length (MM) | 105 | 120 | 135 | 155 | 175 |
| E | Head Tube Angle | 70.0° | 71.0° | 72.0° | 72.5° | 72.5° |
| F | Fork Rake (MM) | 49 | 49 | 49 | 49 | 49 |
| G | Trail (MM) | 74.0 | 68.0 | 61.0 | 58.0 | 58.0 |
| H | Wheelbase (MM) | 970 | 973 | 977 | 984 | 994 |
| I | Chain Stay Length (MM) | 405 | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (MM) | 72 | 72 | 69 | 69 | 69 |
| K | Stack (MM) | 499 | 517 | 532 | 553 | 572 |
| L | Reach (MM) | 364 | 370 | 377 | 382 | 386 |
| M | Stand Over Height (MM) | 685 | 707 | 736 | 763 | 783 |
| O | Stem Length (MM) | 80 | 80 | 90 | 100 | 110 |
| P | Crank Length (MM) | 165 | 165 | 170 | 170 | 172 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
