Kink 2026 Carve 16
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Kink 2026 Carve 16

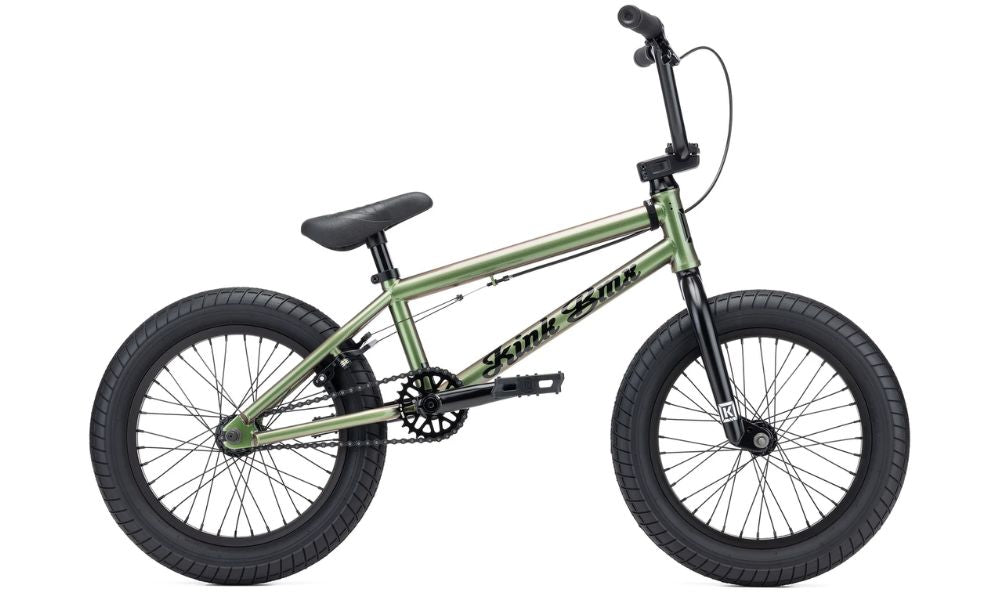

The Kink Carve 16” ensures riders of every age can not only find a bike that fits them but can also hold up to some real BMX riding. Kids are getting serious about BMX at younger and younger ages, and we love it. Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18” bike yet. Made for all types of riding, the Kink Carve comes in a really cool gloss Patina Green colorway.
Specifications
Kink 2026 Carve 16
Frame
Size: 16
Colour: Partina Green
Frame: Kink Carve 100% Hi-Ten Steel
Fork: Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs
Shock:
Drivetrain
Crankset: Mission Triumph 3pc Tubular Chromoly 140mm 8 Spline
Pedals:
Chain: Mission 410
Bottom Bracket: Unsealed American 19mm
Rear Derailleur:
Front Derailleur:
Derailleur Shifter:
Freewheel/Cassette: Mission Rank 25T
Braking System
Brakes: Mission Cease V2
Brake Levers: Mission Mini
Wheels
Tyres: Mission Tracker 16x2.4"
Wheels/Rims: Mission X7
Hubs: [F] Mission Covert Unsealed 3/8 Axle [R] Mission Function Semi-Sealed Cassette 14mm
Other
Handlebar: Kink T700 7"
Stem: Mission Topload 40mm
Seat Post: Mission Combo Steel Post
Saddle: Mission Cypress Mini Combo
Geometry
Kink 2026 Carve 16
| Toptube Length | 16.5" |
| Chainstay Length | 11.25" |
| Headtube Angle | 74.5° |
| Seattube Angle | 71° |
| Standover Height | 6.75″ |
| Bottom Bracket Height | 9.75" |
| Fork Offset | 32mm |
