Home » Giant 2027 Revolt Advanced SL-F*

Giant 2027 Revolt Advanced SL-F*

(0)
$6,499.00
Out of stock
Size
Colour
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

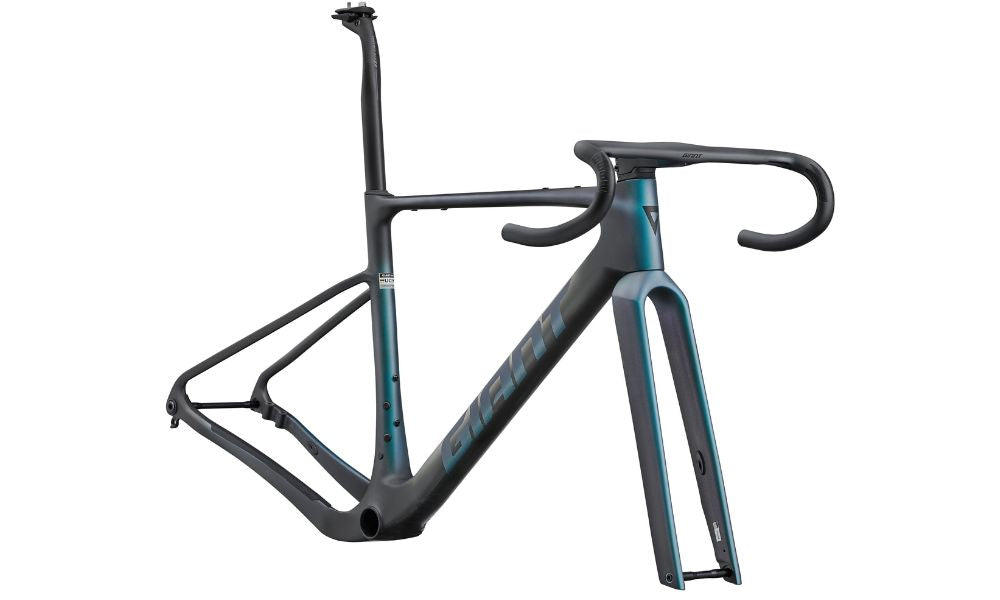

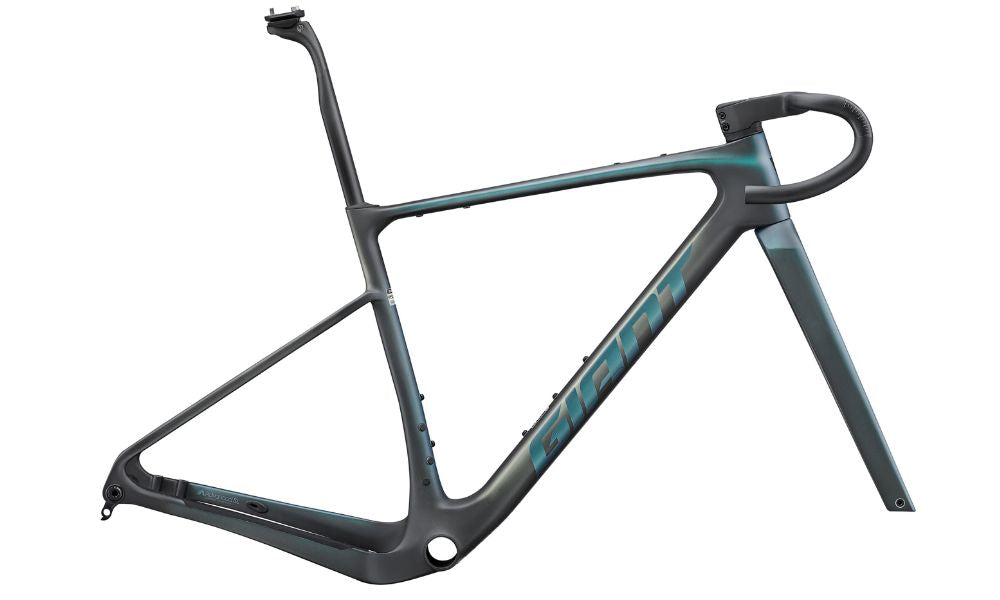

Giant 2027 Revolt Advanced SL-F*

Frames available to order from Australia. Please contact store for availability and ordering on 04 499 9193 or velocitycycles10@gmail.com

ULTRALIGHT EFFICIENCY

The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro.

AERO SPEED OVER DISTANCE

Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimized for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY

With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimized for 45mm tires with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

Specifications

Giant 2027 Revolt Advanced SL-FF

Frame

Size: XS, S, M, M/L L, XL
Colour: Superspeed Teal
Frame: Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout
Fork: Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc
Shock:

Drivetrain

Crankset:
Pedals:
Chain:
Bottom Bracket:
Rear Derailleur:
Front Derailleur:
Shifter:
Freewheel/Cassette:

Braking System

Brakes:
Brake Levers:

Wheels

Tyres: [F] and [R]
Wheels/Rims:
Hubs: [F] [R]

Other

Handlebar: Giant Contact SLR XR Integrated XS:70x420mm, S:80x420mm, M:90x440mm, M/L:100x440mm, L:100x440mm, XL:110x460mm
Stem: Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
Seat Post: Giant Contact SLR XR D-Fuse, composite, 20mm offset
Saddle:

Geometry

Gianty 2027 Revolt Advanced SL-FF

  • XS
      5’1” to 5’5”
  • S
      5’3” to 5’7”
  • M
      5’7” to 5’11”
  • ML
      5’9” to 6’1”
  • L
      5’10” to 6’3”
  • XL
      6’2” to 6’7”
bike diagram with measurements referenced in table that follows
  XS S M ML L XL
A Seat Tube Length (inch) 16.9 17.7 18.5 19.3 20.1 20.9
B Seat Tube Angle 75.0° 74.5° 74.5° 74.0° 74.0° 74.0°
C Top Tube Length (inch) 20.9 21.3 21.7 22.2 22.8 23.2
D Head Tube Length (inch) 3.5 3.9 4.7 5.3 6.1 7.1
E Head Tube Angle 70.5° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (inch) 2 2 2 2 2 2
G Trail (inch) 3.1 2.9 2.8 2.6 2.6 2.6
H Wheelbase (inch) 40.4 40.4 40.7 40.9 41.5 42
I Chain Stay Length (inch) 17 17 17 17 17 17
J Bottom Bracket Drop (inch) 3.1 3.1 3.1 3.1 3.1 3.1
K Stack (inch) 20.7 21.1 21.9 22.6 23.3 24.3
L Reach (inch) 15.3 15.4 15.6 15.8 16.1 16.3
M Stand Over Height (inch) 28.6 29.3 30 30.7 31.4 32.2
N Handlebar Width (inch) 15 15 15.7 15.7 16.5 16.5
O Stem Length (inch) 2.8 3.1 3.5 3.9 3.9 4.3
P Crank Length (inch) 6.5 6.5 6.7 6.7 6.8 6.8
Q Wheel Size 700C 700C 700C 700C 700C 700C
