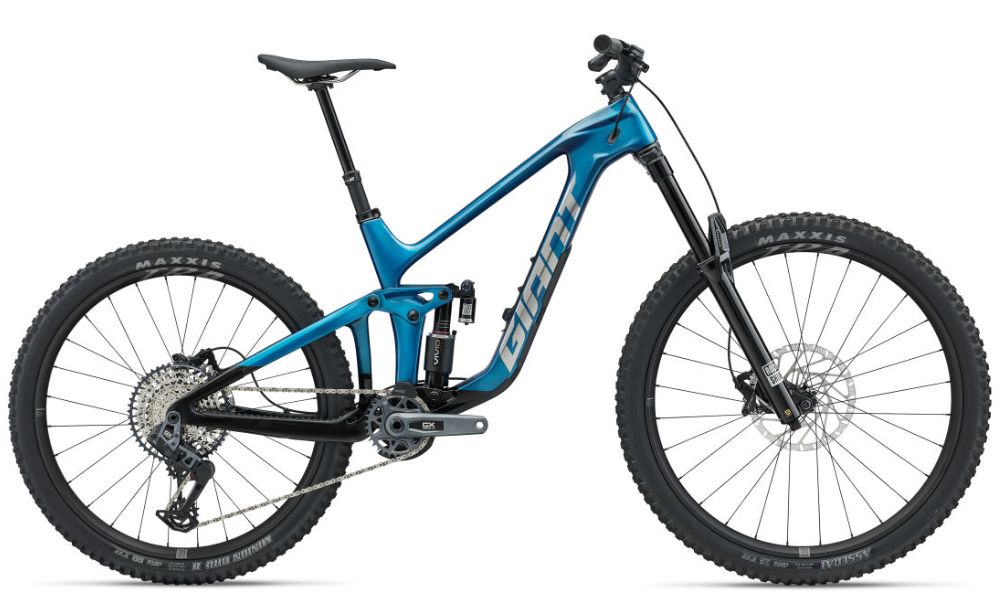

Giant 2027 Reign Advanced
Couldn't load pickup availability
Giant 2027 Reign Advanced
Specifications
Giant 2027 Reign Advanced
Frame
Size: M, L and XL
Colour: Luminous Lagoon
Frame: Advanced-grade composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage
Fork: RockShox Zeb Ultimate, Charger 3.2 RC2 damper, 170mm, 15x110, Maxle Stealth, Debonair
Shock: RockShox Vivid Ultimate, RCT2, adjustable hydraulic bottom out, trunnion mount, 205/65 S:425#, M:425#, L:450#, XL: 475#
Drivetrain
Crankset: SRAM GX Eagle Transmission, DUB, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Pedals:
Chain: SRAM GX Eagle Transmission
Bottom Bracket: SRAM DUB, Press Fit
Rear Derailleur: SRAM GX AXS Transmission
Front Derailleur:
Derailleur Shifter: SRAM AXS Pod, 1x12
Freewheel/Cassette: SRAM GX Eagle Transmission, 10x52
Braking System
Brakes: TRP EVO Pro, hydraulic, TRP rotors [F]220mm, [R]203mm
Brake Levers: TRP EVO Pro
Wheels
Tyres: [F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, MaxxTerra, DD, TR tubeless
Wheels/Rims: Giant TRA WheelSystem, 6069 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, XD driver body
Other
Handlebar: Giant Contact TR35, 800x35mm, 35mm rise
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Seat Post: Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle: Giant Romero SL
Geometry
Giant 2027 Reign Advanced
-
- S
-
163 cm
172 cm
-
- M
-
171 cm 180 cm
-
- L
-
179 cm 188 cm
-
- XL
-
187 cm 198 cm
| S | M | L | XL | |
|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | |
| A Seat Tube Length (mm) | 400 | 425 | 450 | 475 |
| A1 Seat Post Insertion Depth (mm) | 262 | 287 | 312 | 337 |
| B Seat Tube Angle | 77.5° | 77.8° | 78.2° | 77.5° | 77.8° | 78.2° | 76.5° | 76.9° | 77.2° | 76.5° | 76.9° | 77.2° |
| C Top Tube Length (mm) | 558 | 557 | 556 | 589 | 588 | 587 | 622 | 621 | 621 | 654 | 653 | 653 |
| D Head Tube Length (mm) | 100 | 105 | 115 | 120 |
| E Head Tube Angle | 62.7° | 63.0° | 63.4° | 62.7° | 63.0° | 63.4° | 62.7° | 63.1° | 63.4° | 62.7° | 63.1° | 63.4° |
| F Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G Trail (mm) | 147 | 144 | 141 | 147 | 144 | 141 | 147 | 144 | 141 | 147 | 144 | 141 |
| H Wheelbase (mm) | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
| I Chain Stay Length (mm) | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
| J Bottom Bracket Drop (mm) | 29 | 24 | 19 | 29 | 24 | 19 | 29 | 24 | 19 | 29 | 24 | 19 |
| K Stack (mm) | 633 | 630 | 627 | 638 | 635 | 632 | 647 | 644 | 641 | 652 | 649 | 646 |
| L Reach (mm) | 418 | 421 | 426 | 448 | 452 | 456 | 468 | 471 | 476 | 499 | 503 | 507 |
| M Stand Over Height (mm) | 714 | 718 | 723 | 733 | 738 | 742 | 746 | 750 | 755 | 762 | 766 | 771 |
| O Stem Length (mm) | 40 | 40 | 40 | 40 |
| P Crank Length (mm) | 165 | 170 | 170 | 170 |
| Q Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
