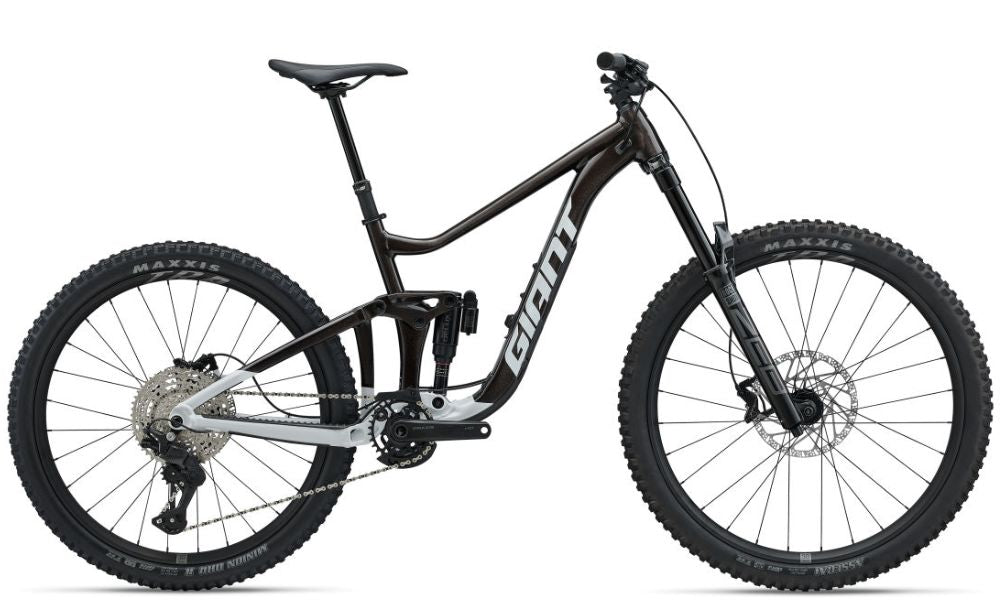

Giant 2027 Reign
Couldn't load pickup availability
Giant 2027 Reign
Specifications
Giant 2027 Reign
Frame
Size: M, L and XL
Colour: Obisidian Pulse
Frame: ALUXX SL-Grade Aluminium front and rear triangles, Maestro Suspension, 160mm travel, 12x148mm thru-axle, integrated storage solution frame size S/XL: 29"F & 29"R commercial spec and 27.5" rear wheel compatible
Fork: NEW RockShox Zeb Delta RC damper 29"Boost 15x110 Maxle Stealth 170mm
Shock: RockShox SuperDeluxe, R, 205x62,5, custom tuned for Giant, recommended sag 30%
Drivetrain
Crankset: Praxis Cadet HD M24 Boost, 32T, steel chainring, 55mm chainline with NEW MRP AMg CS Guide, Next generation upper guide
Pedals:
Chain: KMC X12
Bottom Bracket: Shimano PressFit or Praxis Pressfit
Rear Derailleur: NEW Shimano Deore RD M7200, Shadow +
Front Derailleur:
Derailleur Shifter: NEW Shimano Deore SL M6200, 1x12
Freewheel/Cassette: NEW Shimano Deore, CS M6200 10x51
Braking System
Brakes: TRP EVO Comp, black HD-M7040 4 piston
Brake Levers: TRP EVO Comp
Wheels
Tyres: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, 60 TPI, EXO+, TR [R] Maxxis Minion DHR II 29 27.5x2,4WT, 3C MaxxTerra, DD 2x60 TPI TR
Wheels/Rims: Giant TRA 2, F29"-R27.5" hookless ALUXX wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 j-bend spokes, MS driver body
Hubs: Giant TRA 2, F29"-R27.5" hookless ALUXX wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 j-bend spokes, MS driver body
Other
Handlebar: Giant Contact TR35, 800x35mm, 35mm rise,AL6061
Stem: Giant Contact SL 35, Diameter 35mm, 8 degree
Seat Post: Contact Switch AT DSP with remote lever, 30,9mm
Saddle: Giant Romero
Geometry
Giant 2027 Reign
| S | M | L | XL | |
|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | |
| B Seat Tube Angle | 78.3° | 78.7° | 79.0° | 78.3° | 78.7° | 79.0° | 77.3° | 77.7° | 78.0° | 77.3° | 77.7° | 78.0° |
| C Top Tube Length (mm) | 556 | 555 | 555 | 587 | 586 | 585 | 620 | 620 | 619 | 652 | 652 | 651 |
| D Head Tube Length (mm) | 100 | 105 | 115 | 120 |
| E Head Tube Angle | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° |
| H Wheelbase (mm) | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
| I Chain Stay Length (mm) | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
| K Stack (mm) | 627 | 624 | 622 | 632 | 629 | 626 | 641 | 638 | 635 | 645 | 642 | 639 |
| L Reach (mm) | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 506 | 510 | 514 |
| M Stand Over Height (mm) | 723 | 727 | 732 | 743 | 747 | 752 | 756 | 760 | 765 | 771 | 777 | 782 |
| P Crank Length (mm) | 165 | 170 | 170 | 170 |
