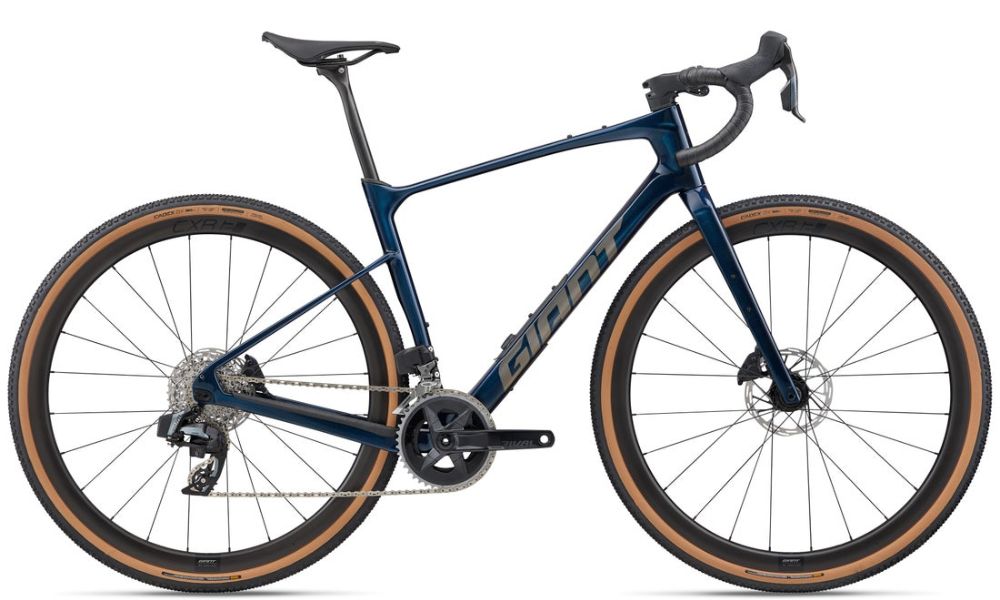

Giant 2026 Revolt Advanced Pro 1
Please contact store for availability on 04 499 9193 or velocitycycles10@gmail.com
GRAVEL CRUSHER
Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.
FAST AND VERSATILE
Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.
SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.
Specifications
Giant 2026 Revolt Advanced Pro 1
Frame
Size: S, M, ML, L
Colour: Ocean twilight
Frame: Advanced-Grade Composite, 12x142mm thru-axle, flat mount disc, flip chip dropout, integrated downtube storage
Fork: Advanced SL-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock:
Drivetrain
Crankset: SRAM Rival D1 Wide DUB , 30/43 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Pedals:
Chain: SRAM Rival-E1, 12-speed
Bottom Bracket: SRAM DUB, Press Fit
Rear Derailleur: SRAM Rival AXS, RD-Force-E-E1
Front Derailleur: SRAM Rival AXS Wide D2
Derailleur Shifter: SRAM Rival AXS HRD, ED-Force-E1
Freewheel/Cassette: Shimano Ultegra, 12-speed, 11x30
Braking System
Brakes: SRAM Rival AXS HRD, ED-Riv-E1, SRAM PaceLine rotors [F]160mm, [R]160mm
Brake Levers: SRAM Rival AXS HRD, ED-Riv-E1
Wheels
Tyres: CADEX GX, 700x40c, tubeless
Wheels/Rims: Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Hubs: [F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
Other
Handlebar: Giant Contact SLR XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem: Giant Contact Aerolight S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seat Post: Giant D-Fuse SLR, composite, -5/+15mm offset
Saddle: Giant Grit SL
Geometry
Giant 2026 Revolt Advanced Pro 1
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (mm) | 430 | 450 | 470 | 490 | 510 | 530 |
| B Seat Tube Angle | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C Top Tube Length (mm) | 540 | 550 | 560 | 575 | 585 | 600 |
| D Head Tube Length (mm) | 125 | 135 | 150 | 165 | 180 | 195 |
| E Head Tube Angle | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G Trail (mm) | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
| H Wheelbase (mm) | 1024 | 1034 | 1020 | 1030 | 1026 | 1036 | 1031 | 1041 | 1041 | 1051 | 1056 | 1066 |
| I Chain Stay Length (mm) | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 |
| J Bottom Bracket Drop (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| K Stack (mm) | 556 | 570 | 586 | 602 | 616 | 630 |
| L Reach (mm) | 381 | 381 | 387 | 391 | 397 | 407 |
| M Stand Over Height (mm) | 724 | 731 | 740 | 747 | 757 | 764 | 774 | 780 | 791 | 797 | 807 | 814 |
| O Stem Length (mm) | 50 | 60 | 70 | 80 | 80 | 90 |
| P Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
