Giant 2026 Revolt Advanced 0

(0)
$5,999.00
Out of stock
Size
Colour
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

*Bike available from Giant NZ

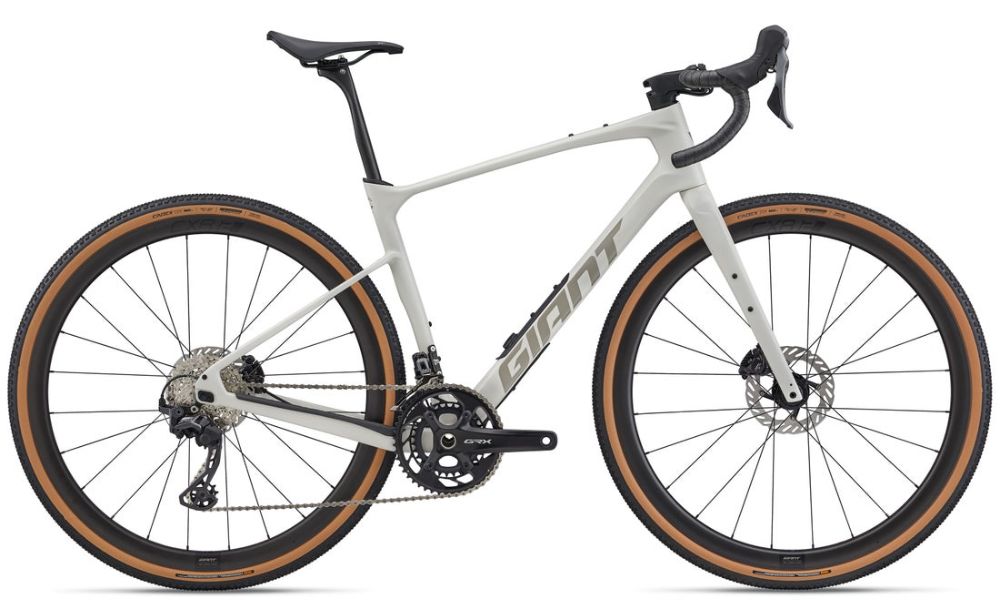

Giant 2026 Revolt Advanced 0

Please contact store for availability on 04 499 9193 or velocitycycles10@gmail.com

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

Giant 2026 Revolt Advanced 0

Frame

Size: S, M, ML, L
Colour: Snow Drift
Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock:

Drivetrain

Crankset: Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Pedals:
Chain: KMC X12L-1
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano GRX RX-820
Front Derailleur: Shimano GRX RX-820
Derailleur Shifter: Shimano GRX RX-820, 2x12
Freewheel/Cassette: Shimano CS-HG710, 12-speed, 11x36

Braking System

Brakes: Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
Brake Levers: Shimano GRX RX-820 hydraulic

Wheels

Tyres: CADEX GX, 700x40c, tubeless
Wheels/Rims: Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Hubs: [F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle

Other

Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem: Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seat Post: Giant D-Fuse SL, composite, 14mm offset
Saddle: Giant Grit

Geometry

Giant 2026 Revolt Advanced 0

bike diagram with measurements referenced in table that follows

  XS S M ML L XL
  SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
