Giant 2026 Revolt 2

(0)
$2,199.00
Out of stock
Size
Colour
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

*Bike available from Giant NZ

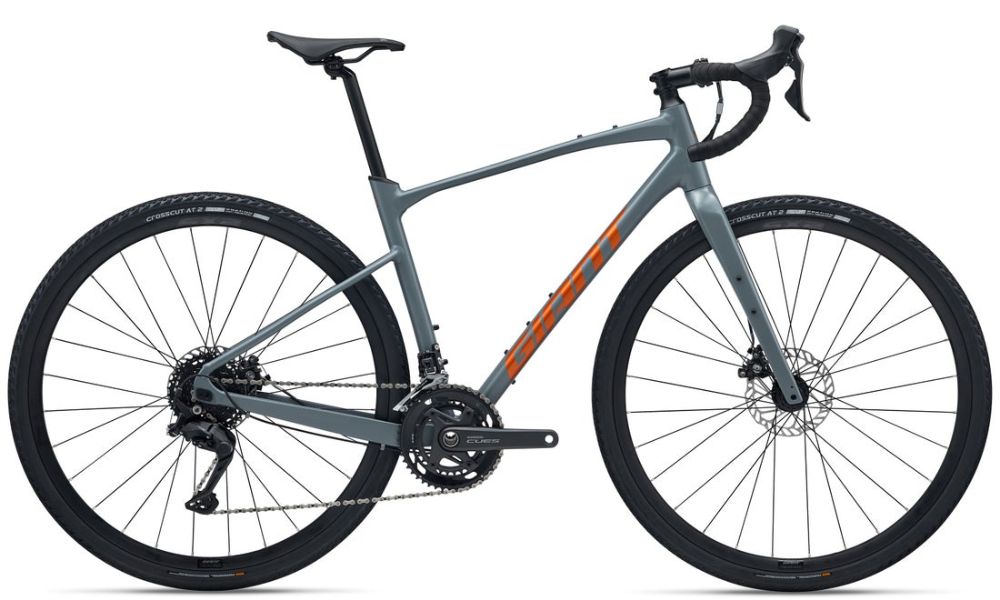

Giant 2026 Revolt 2

Please contact store for availability on 04 499 9193 or velocitycycles10@gmail.com

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

Giant 2026 Revolt 2

Frame

Size: S, M, ML, L, XL
Colour: Ocean Storm
Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock:

Drivetrain

Crankset: Shimano Cues U6030, 32-46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Pedals:
Chain: KMC X11
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano Cues U3020, Shadow
Front Derailleur: Shimano Cues 3030
Derailleur Shifter: Shimano Cues U3030, 2x9
Freewheel/Cassette: Shimano LG300, 11-36

Braking System

Brakes: Shimano RS305 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano Cues U3030

Wheels

Tyres: Giant CrossCut AT 2, 700x38c, tubeless
Wheels/Rims: Giant S-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle

Other

Handlebar: Giant Contact XR Ergo-Control, 31.8mm XS:40cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem: Giant Sport, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seat Post: Giant D-Fuse, alloy, 14mm offset
Saddle: Giant Grit

Geometry

Giant 2026 Revolt 2

bike diagram with measurements referenced in table that follows

  XS S M ML L XL
  SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1029 | 1039 1025 | 1035 1030 | 1040 1035 | 1045 1045 | 1055 1061 | 1071
I Chain Stay Length (mm) 430 | 440 430 | 440 430 | 440 430 | 440 430 | 440 430 | 440
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 717 | 724 734 | 741 752 | 759 769 | 776 786 | 793 801 | 810
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700x 42C | 700x 42C | 700x 42C | 700x 42C | 700x 42C | 700x 42C |
