Giant 2026 Revolt 1
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

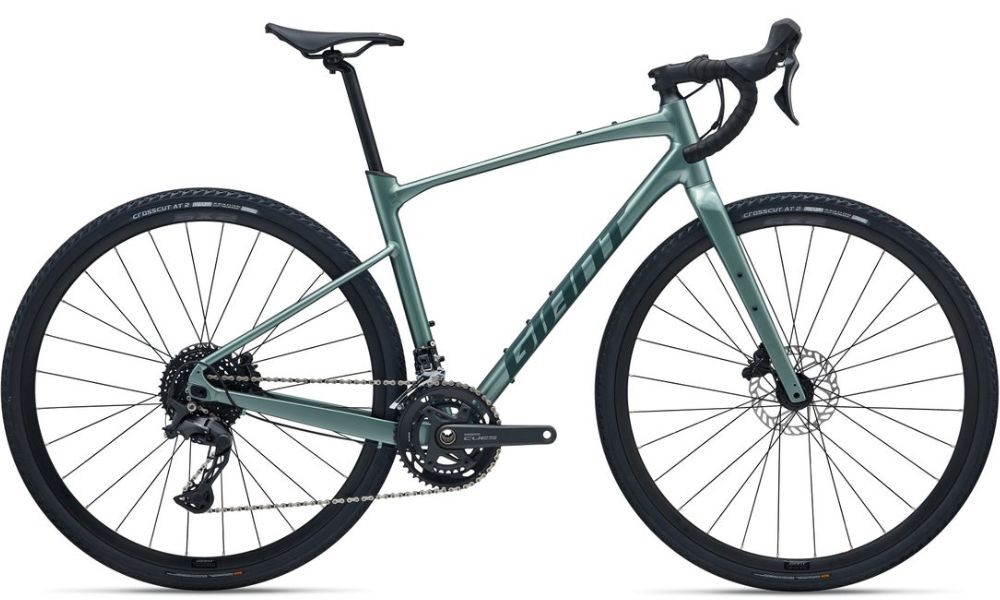

Giant 2026 Revolt 1
Please contact store for availability on 04 499 9193 or velocitycycles10@gmail.com
Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Specifications
Giant 2026 Revolt 1
Frame
Size: S, M, ML, L, XL
Colour: Alpine Green
Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock:
Drivetrain
Crankset: Shimano Cues U6030, 32-46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Pedals:
Chain: KMC X11
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano Cues U6020, Shadow+
Front Derailleur: Shimano Cues U6030
Derailleur Shifter: Shimano Cues U6030, 2x10
Freewheel/Cassette: Shimano LG300, 11-39
Braking System
Brakes: Shimano Cues U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano Cues U6030 hydraulic
Wheels
Tyres: Giant CrossCut AT 2, 700x38c, tubeless
Wheels/Rims: Giant S-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Other
Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seat Post: Giant D-Fuse, alloy, 14mm offset
Saddle: Giant Grit
Gemeorty
Giant 2026 Revolt 1
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | |
| A Seat Tube Length (mm) | 430 | 450 | 470 | 490 | 510 | 530 |
| B Seat Tube Angle | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C Top Tube Length (mm) | 540 | 550 | 560 | 575 | 585 | 600 |
| D Head Tube Length (mm) | 125 | 135 | 150 | 165 | 180 | 195 |
| E Head Tube Angle | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G Trail (mm) | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
| H Wheelbase (mm) | 1029 | 1039 | 1025 | 1035 | 1030 | 1040 | 1035 | 1045 | 1045 | 1055 | 1061 | 1071 |
| I Chain Stay Length (mm) | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 |
| J Bottom Bracket Drop (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| K Stack (mm) | 556 | 570 | 586 | 602 | 616 | 630 |
| L Reach (mm) | 381 | 381 | 387 | 391 | 397 | 407 |
| M Stand Over Height (mm) | 717 | 724 | 734 | 741 | 752 | 759 | 769 | 776 | 786 | 793 | 801 | 810 |
| O Stem Length (mm) | 50 | 60 | 70 | 80 | 80 | 90 |
| P Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q Wheel Size | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
