Giant 2025 Reign Advanced 1
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

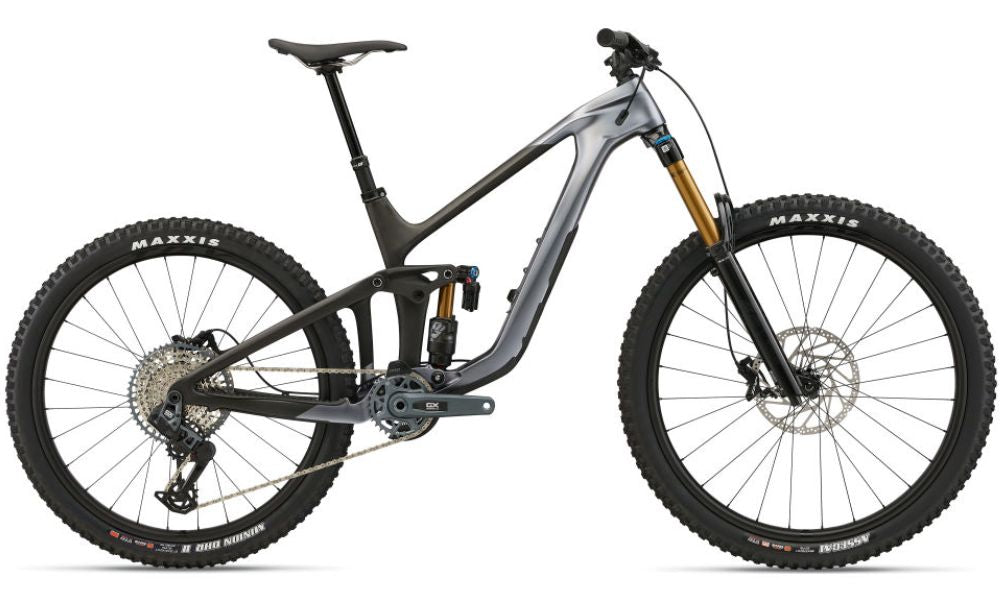

Giant 2025 Reign Advanced 1
Specifications
Giant 2025 Reign Advanced 1
Frame
Colour: Mercury/Raw Carbon
Frame: Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
Fork: Fox 38 Factory, 170mm, GRIP X2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
Shock: Fox Float X2 Factory, 2 position, custom tuned for Giant
Drivetrain
Crankset: SRAM GX T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Pedals: NA
Chain: SRAM GX T-Type
Bottom Bracket: SRAM DUB, press fit
Rear Derailleur: SRAM GX Eagle T-Type AXS
Front Derailleur: NA
Derailleur Shifter: SRAM AXS Pod, 1x12
Freewheel/Cassette: SRAM GX, T-Type 10x52
Braking System
Brakes: TRP EVO DH-R, hydraulic, TRP 2.3mm rotors [F]220mm, [R]200mm
Brake Levers: TRP EVO DH-R, hydraulic
Wheels
Tyres: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxTerra, DD, TR tubeless
Wheels/Rims: Giant TRX Hookless Tubeless ready Carbon Fr: 29"", Rr: 27.5"" 30mm inner width
Hubs: Giant TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
Other
Handlebar: Giant Contact TR35, alloy, 35mm
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Saddle: Giant Romero SL
Seat Post: Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Geometry
Giant 2025 Reign Advanced 1
Available sizes may vary from country to country.
-
- S
-
163 cm
172 cm
-
- M
-
171 cm 180 cm
-
- L
-
179 cm 188 cm
-
- XL
-
187 cm 198 cm
| S | M | L | XL | ||
| A | Seat Tube Length (MM) | 400 | 425 | 450 | 475 |
| B | Seat Tube Angle | 78.3° | 78.3° | 77.3° | 77.3° |
| C | Top Tube Length (MM) | 556 | 587 | 620 | 652 |
| D | Head Tube Length (MM) | 100 | 105 | 115 | 120 |
| E | Head Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| F | Fork Rake (MM) | 44 | 44 | 44 | 44 |
| G | Trail (MM) | 140.0 | 140.0 | 140.0 | 140.0 |
| H | Wheelbase (MM) | 1214 | 1246 | 1271 | 1304 |
| I | Chain Stay Length (MM) | 445 | 445 | 445 | 445 |
| J | Bottom Bracket Drop (MM) | 35 | 35 | 35 | 35 |
| K | Stack (MM) | 627 | 632 | 641 | 645 |
| L | Reach (MM) | 426 | 456 | 476 | 506 |
| M | Stand Over Height (MM) | 720 | 735 | 751 | 746 |
| O | Stem Length (MM) | 40 | 40 | 40 | 40 |
| P | Crank Length (MM) | 165 | 170 | 170 | 170 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
