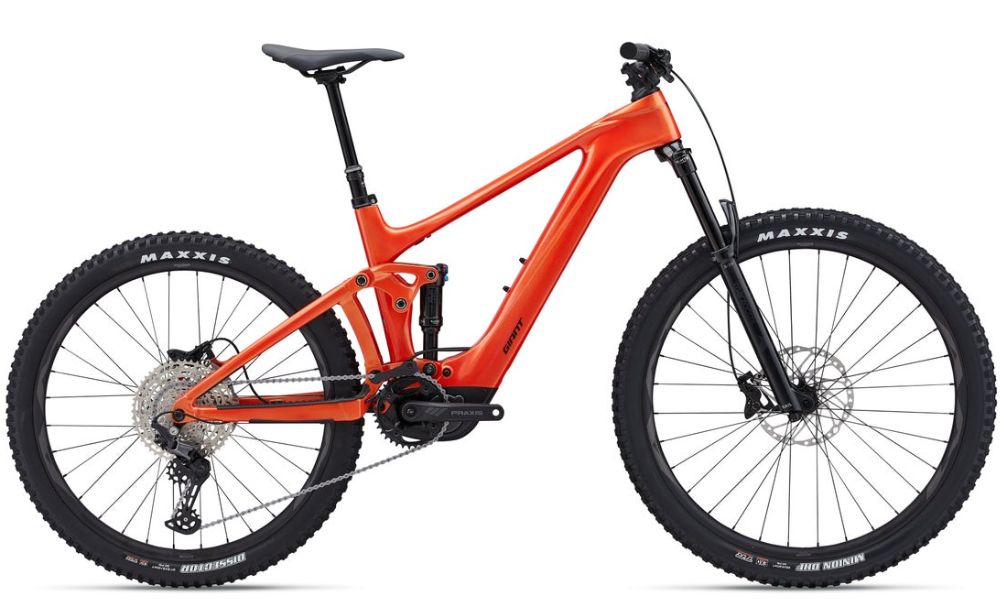

Giant 2024 Trance X Advanced E+ Elite 3

Giant 2024 Trance X Advanced E+ Elite 3

ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, AND EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. THE ULTRA-SLIM BATTERY MINIMIZES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.

Lighter weight

EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

Advanced cockpit control

RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.

More power

New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors.

Specifications

Giant 2024 Trance X Advanced E+ Elite 3

Frame

Colour: Helios Orange
Frame: Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
Fork: Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
Shock: Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, custom tuned



Drivetrain

Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 165mm, L:165mm, XL:170mm
Pedals:
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
Bottom Bracket: NA
Rear Derailleur: Shimano Deore, 12-speed, Shadow+
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: Shimano Deore
Freewheel/Cassette: Shimano CS-M6100-12, 10-51T, 12-speed



Wheels

Tyres: Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Wheels/Rims: Giant AM, alloy 29"[F], 27.5" [R]
Hubs: [F] Shimano MT410 15x110 [R] Shimano MT410 12x148



Braking System

Brakes: Shimano BR-M420, 4-piston, hydraulic disc, [F] 203mm, [R] 203mm
Brake Levers: Shimano Deore, I-spec EV



Other

Handlebar: Giant Contact SL 35 Trail, 35
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm
Saddle: Giant Romero
Seat Post: TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9



E-Bike

Motor: Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
Controller: RideControl Ergo 3, grip integrated
Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Charger: EnergyPak 4A smart charger compact
Battery: EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible



Geometry

Giant 2024 Trance X Advanced E+ Elite 3
