Home » Amflow 2026 PL Carbon Pro

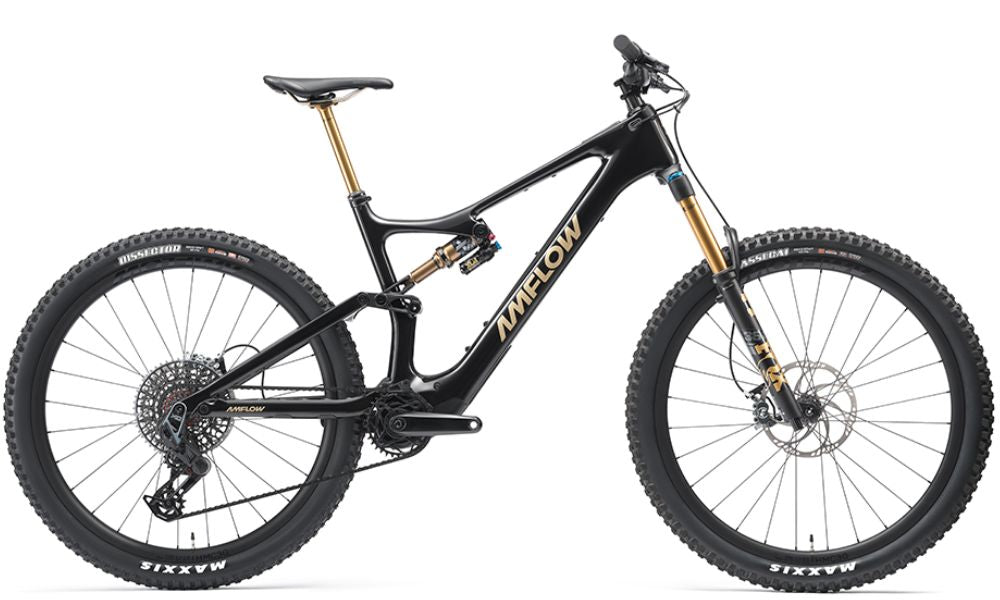

Amflow 2026 PL Carbon Pro

(0)
$15,990.90
In stock
Size
Colour
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

Amflow 2026 PL Carbon Pro

Power to the Peak

The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing 19.2 kg. With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.

Drive Assistance

Powerful Drive, Smooth Assistance

Designed and manufactured by DJI, the Avinox Drive System is seamlessly integrated into Amflow PL, infusing the type of cutting-edge hardware and software that has made DJI an industry leader in drones and camera stabilization technology. The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio.

The durable, high-strength polymer material inside the Avinox M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced DJI algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.

  • Max Continuous Torque: 105 N·m
  • M1 Drive Unit Weight: 2.52 kg
  • Peak Power: 850 W
Specifications

Amflow 2026 PL Carbon Pro

Frame

Colour: Cosmic Black
Frame: Amflow PL Carbon Frame, 150mm rear travel, Compatible with 27.5" and 29" rear wheels
Fork: FOX 36 Factory, 160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake
Shock: FOX FLOAT X Factory, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment

Drivetrain

Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Pedals:
Chain: SRAM X0 Eagle Transmission Flattop Chain
Bottom Bracket: NA
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable
Front Derailleur:
Derailleur Shifter: SRAM AXS Pod Controller
Freewheel/Cassette: SRAM XS-1295 Eagle Transmission 10-52T

Braking System

Brakes: Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)
Brake Levers: HC lever

Wheels

Tyres: [F] Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR [R] Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Wheels/Rims: Amflow HMC-30, Carbon, 29'', 30mm internal width, 28H, tubeless ready
Hubs: [F] Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt [R] Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T

Other

Handlebar: Amflow Enduro Carbon Handlebar, 25mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep
Stem: Amflow Enduro Stem, One-piece CNC, 35mm
Saddle: Ergon SM PRO M/L
Seat Post: Fox Transfer Factory, Travel adjustable in 5mm, M: 125-150mm, L/XL: 155-180mm, XXL: 185-210mm

E-Bike

Drive Unit: Avinox M1 Drive Unit: 105 N·m
Battery: Avinox Integrated Battery: 600Wh/800Wh
Display: Avinox Screen: 2-inch OLED Control Display
Controller: Avinox Wireless Controllers: Right and left sides
Charger: Avinox Fast Charger: 12A/508W

Geometry

Amflow 2026 PL Carbon Pro

M L XL XXL
A Reach 452mm 475mm 500mm 525mm
B Stack Height 618mm 628mm 641mm 655mm
C Standover Height 780mm 785mm 790mm 795mm
D Front Center 782mm 810mm 844mm 873mm
E Fork Length 570mm 570mm 570mm 570mm
F Wheelbase 1227mm 1255mm 1289mm 1318mm
G Chainstay Length 445mm 445mm 445mm 445mm
H Bottom Bracket Drop 29mm 29mm 29mm 29mm
I Bottom Bracket Height 345.5mm 345.5mm 345.5mm 345.5mm
J Effective Top Tube Length 595mm 620mm 648mm 676mm
K Head Tube Angle 64.5° 64.5° 64.5° 64.5°
L Head Tube Length 105mm 115mm 130mm 145mm
M Actual Seat Tube Angle 70° 70° 70° 70°
N Effective Seat Tube Angle 77° 77° 77° 77°
O Seat Tube Height 430mm 450mm 470mm 500mm
