Amflow 2027 TL Carbon - Price TBC

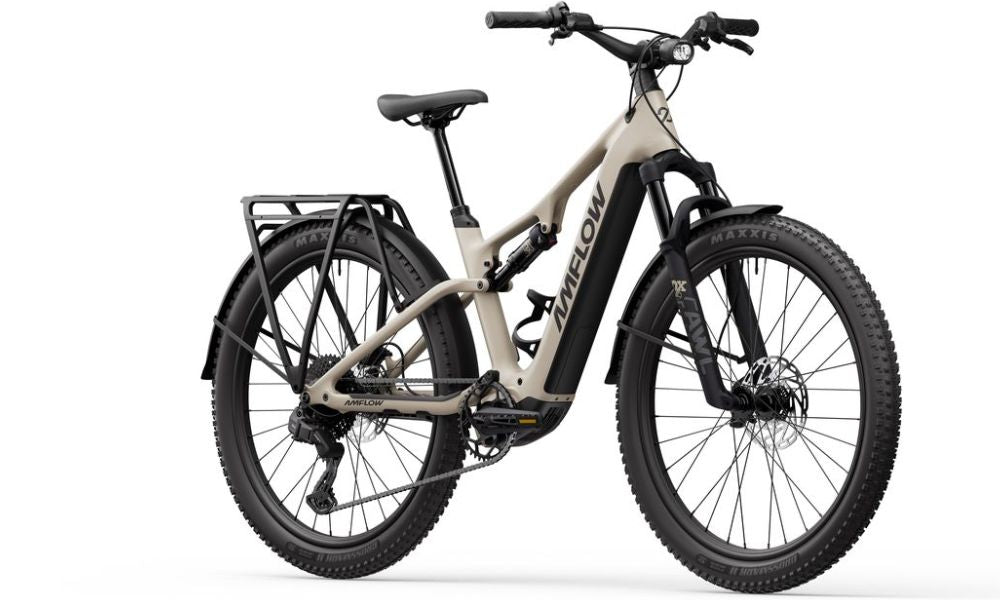

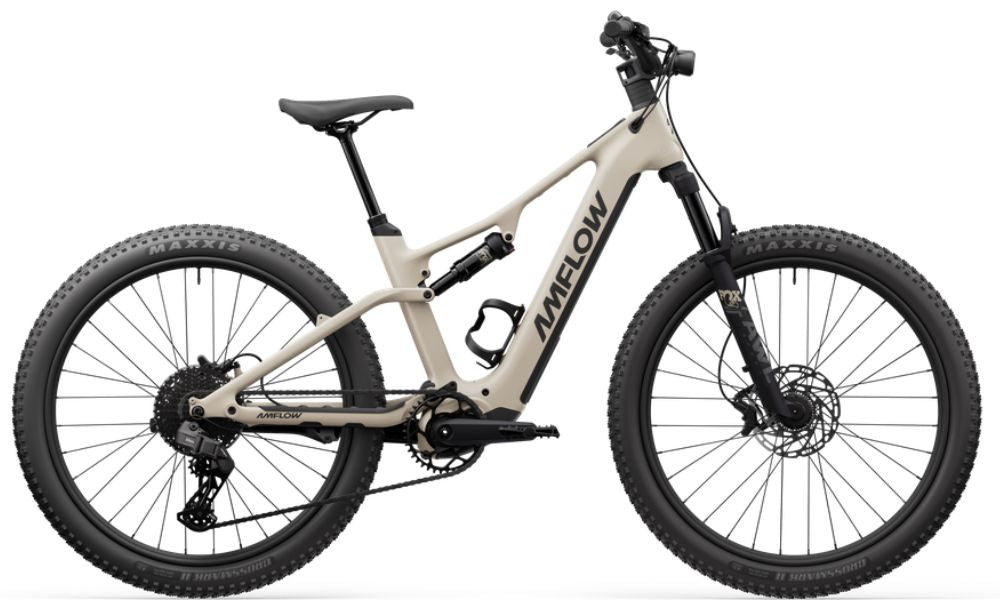

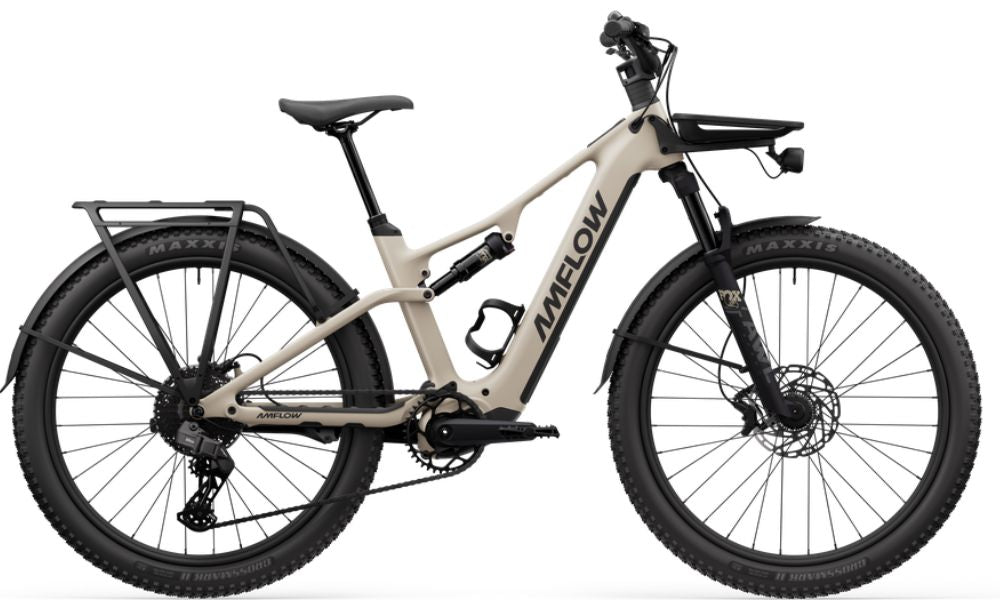

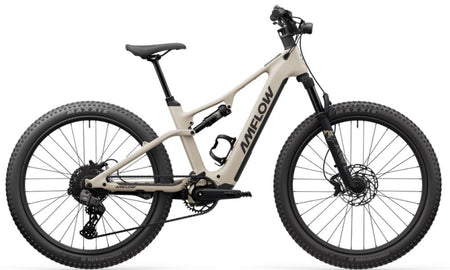

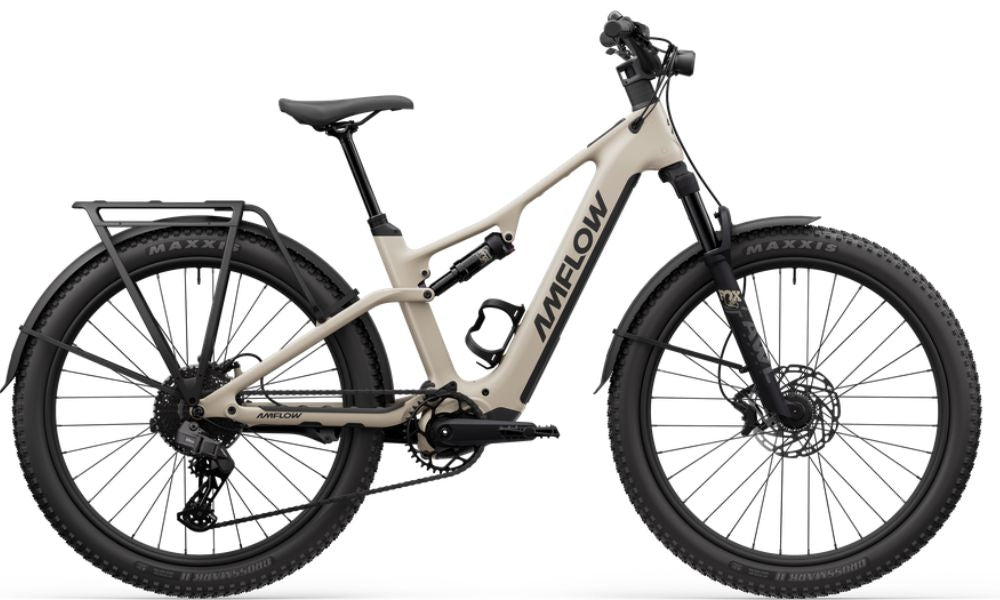

Amflow TL Carbon

Price TBC - Coming Soon to NZ

Please contact store for more information on 04 499 9193 or velocitycycles10@gmail.com

Fully Loaded for Adventure

An SUV e-bike built for multiple scenarios, Amflow TL Carbon brings agility on trails, smoothness in the city, and stability to loaded touring.

Full Suspension for All-Terrain Riding.

A 2.9kg full-carbon frame keeps the bike exceptionally agile and durable, bringing the complete bike weight down to just 22.6kg.

Full Suspension Co-Developed With FOX

With 120mm of front travel and 105mm of rear travel, the full suspension system absorbs bumps in the city, stabilizes cargo on loaded rides, and stays supple over roots and rocks while holding strong on bigger hits.

Both front and rear wheels can be switched from 27.5-inch to 29-inch to match different terrain needs.

FOX AWL and FLOAT suspension are optimized for the Amflow TL platform, delivering confident handling, comfort, and control across a wide range of terrain.

Ergonomic Design for Long-Ride Comfort

Outstanding geometry and anti-squat performance make every stroke count, keeping you efficient on long rides and in control on descents.

Carry More for the Ride Ahead

Supports a 200kg Total Weight for Loaded Touring

The total weight includes the bike, front and rear rack loads (max 20kg front, 27kg rear), and a rider weight of up to 125kg. With its modular mounting design and MIK HD-compatible rear rack, the bike supports panniers, a bike trailer , and other accessories.

Drive Unit

125N·m & 1100W Powerful Output

Traction Control System (TCS)

With real-time data from a multi-sensor system, the Avinox Drive Unit dynamically adjusts power output to deliver stable, reliable rear-wheel traction and reduce the possibility of slipping.

Smarter Control for Better Rides

Smart Offline Navigation

The Avinox Ride app supports importing third-party routes (GPX/FIT/TCX format) and sending them to the Control Display. During rides, the display shows the route in real time with turn guidance and off-course alerts. Saved routes can be accessed anytime for repeated navigation.

Apple® Find My Tracking

Pair Amflow TL Carbon with Apple® Find My to check the bike’s location and battery status, or activate its sound alert

Smart Heart Rate Control

Pair Amflow TL Carbon with a Bluetooth heart rate monitor, then set your target heart rate zone in the app. If your heart rate drops too low, the system reduces assistance. If it climbs too high, motor support increases automatically to help keep you in your target zone.

Range for New Horizons

Both 800Wh and 600Wh batteries can be paired with the 480Wh secondary battery, offering up to 1280Wh of total capacity.

Flexible Swapping, Versatile Configurations

Easy to carry and swap with one hand, both 800Wh and 600Wh removable batteries are built for long-distance, high-intensity rides. You can also add the 480Wh secondary battery to expand total capacity up to 1280Wh.

Safe Sequential Four-Battery Charging

Pair with the new charging hub for safe, sequential multi-battery charging. Connect it to either the fast charger or the standard charger, and it can safely charge up to four batteries in sequence—without constant unplugging and swapping. You can also set a charge limit, which automatically cuts the power once charging is complete.

Capability in the Details

Avinox × SmoothShift Electronic Shifting

The Drive Unit detects gear-shift signals and drives the cassette to enable smooth shifting, without needing you to pedal. It intelligently reduces torque to minimize shock and protect the chain. Shift parameters can be adjusted directly on the Control Display. When paired with an Avinox-specific chain, the system stays smooth and controlled under high torque.

Amflow Accessory Ecosystem

Equip your bike with purpose-made front and rear racks, mudguards, handlebars, a stem, wheels, hubs, a dropper post, pedals, brakes, a thru-axle for bike trailer, a kickstand, a saddle, and grips to match a wide range of riding scenarios.

Built to Perform

Specifications

Amflow 2027 TL Carbon

Frame

Size:
Colour: Silica Beige
Frame: Amflow TL Carbon Frame, Full Suspension, Removable Battery, Compatible With 27.5″ and 29″ Front and Rear Wheels, Compatible With Front and Rear Mudguards, Compatible With Rear Rack and Front Rack, Compatible With Bike Trailers (Requires Trailer Thru-Axle)
Fork: FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset
Shock: FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190×45mm

Drivetrain

Crankset: Avinox SL Crankset (S/M: 155mm; L/XL: 160mm)
Pedals:
Chain: Avinox eGlide T Chain (10S/11S, 118 Links)
Bottom Bracket:
Rear Derailleur: TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur
Front Derailleur:
Shifter:
Freewheel/Cassette: CS-M5243, 10-Speed, 11-43T

Braking System

Brakes: Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow, Tektro TR180-61E, Ø180mm, 2.3mm thickness, with integrated tonewheel for Avinox
Brake Levers:

Wheels

Tyres: [F] and [R] Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI
Wheels/Rims: [F] Amflow HTA-25 Front Wheel (27.5″), Alloy, 27.5″, 25mm Inner Width, 32H [R] Amflow HTA-25 Rear Wheel (27.5″), Alloy, 27.5″, 25mm Inner Width, 32H
Hubs: [F] Alloy, 15×110mm Thru-Axle, 32H, 6-bolt [R]Alloy, 12×148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub

Other

Handlebar: Amflow Touring Handlebar, S/M Size Frame: 720mm Width, 35mm Diameter, 93mm Rise, L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise
Stem: Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)
Seat Post: Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm), S/M Size Frame: 150mm, L/XL Size Frame: 170mm
Saddle: Amflow Touring Saddle

E-Bike

Drive Unit: Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m
Battery: Avinox RS800 Battery (Removable)
Display: Avinox DPC100, 2-inch OLED Control Display
UI/Remote: Avinox Wireless Controller × 2 (One on each side of the handlebar)
Charger: Avinox 4A Charger, 168W Output

Extras

Fenders: Front Mudguard, Rear Mudguard
Kickstand: Amflow Touring Kickstand (348mm)
Lights: [F] Avinox Front Light [R] Sate-lite M8 Rear Light With Integrated Reflector
Amflow Touring Rear Rack, Compatible With MIK HD Standard
Amflow Bottle Cage

Reliability - Built for Long-Term Confidence

Geometry

Amflow 2027 TL Carbon
