Amflow 2027 PX Carbon Pro

Amflow 2027 PX Carbon Pro

Amflow PX - Light Yet Limitless

Slim and light, yet remarkably powerful. An ultra-light carbon fiber frame brings the bike down to 20.6kg* for confident, effortless control.

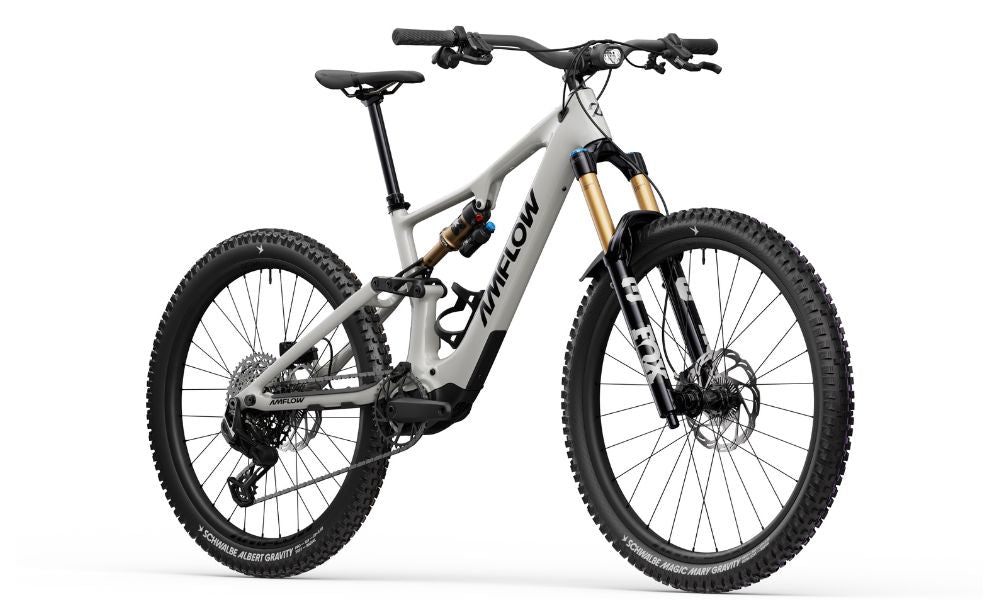

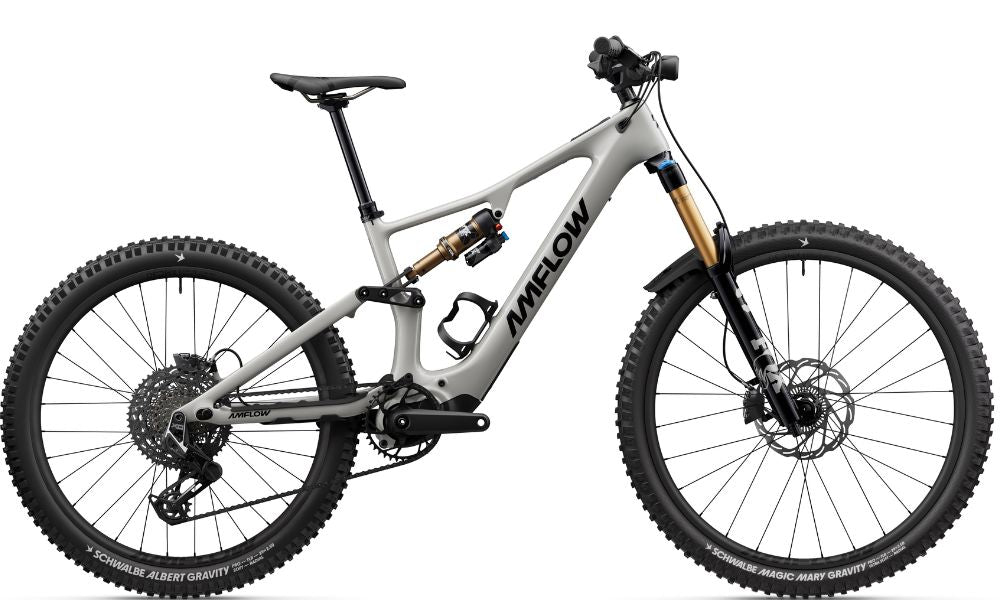

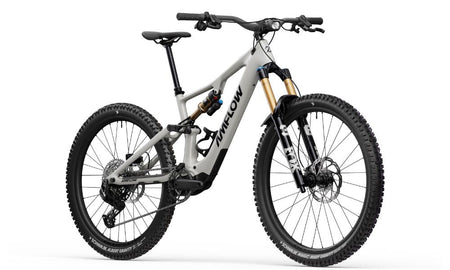

Available in Moostone Grey, a futuristic design, brought to life by shifting light and shadow.

Geometry Design

Sleek & Agile, Total Control

Featuring a compact, streamlined design with a total weight of approximately 2.4kg*, it is lightweight without compromising on a powerful performance.

Versatile Geometry To Conquer Any Terrain

Amflow PX features a cutting-edge progressive geometry. With precision adjustments to the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations [2]. This allows the bike to adapt precisely to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.

Drive Unit

Potent Power, Smooth Assistance

Surging Power, Naturally Refined

Power delivery shouldn't feel abrupt. The Avinox M2S Drive Unit utilizes multiple high-precision sensors and intelligent algorithms to adjust output in real-time, delivering a natural, linear pedaling feel. The Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. For the most challenging trails or steep inclines, activate Boost mode to instantly get 150N·m of torque and 1500W high-power assistance.

Whisper-Quiet, Immersive Riding

Innovative compound planetary gears and helical gear design suppress the operating sound of the Avinox M2S Drive Unit to as low as 45dBA. On descents, rattling is kept to a minimum, so the sound of the wind and trail feedback become clearer, allowing you to focus on your rhythm and handling, fully immersing yourself in the joy of riding.

Compact, More Capable

While weighing just 2.59kg*, the Avinox M2S Drive Unit has achieved a qualitative leap in performance. Compared to the previous generation, power density has increased by 45.9% and torque density by 21.6%.

Battery and Range

Custom Cells, Higher Output

• Weight: 3.18kg
• Rated Capacity: 700Wh
• Charge Cycles: 500 cycles

Charge Fast, Ride Free

A 700Wh high-capacity battery paired with 3x super-fast charging supports not only all-day epic rides but also allows you to quickly recharge during breaks, eliminating range anxiety.

Touchscreen Control System

Smart Ride, Ready To Go

Smart Offline Navigation: The Avinox Ride app is compatible with third-party route imports and can convert historical tracks into route files (GPX/FIT/TCX formats), allowing one-click synchronization and management of ride data. Once the Control Display receives the data, it can navigate independently without a phone connection, providing real-time turn-by-turn guidance and off-course alerts.

Smart Heart Rate Control: No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety.

Smart Companion

Amflow PX seamlessly integrates cutting-edge smart technology into your daily ride, delivering effortless convenience on every journey.

Premium Components

Premium Build, Uncompromising Performance

All-Round Reliability

Quality Assurance, Worry-Free Experience

Specifications

Amflow 2027 PX Carbon Pro

Frame

Size: M, L, XL, XXL
Colour: Moonstone Grey
Frame: Amflow PX Carbon Pro Frame, 40 adjustable geometry configurations *, Compatible with 27.5″ and 29″ rear wheels
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
Fork: FOX 36 Factory (MY 2027),160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
Shock: FOX Float X Factory (MY 2027), 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock

Drivetrain

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Pedals:
Chain: SRAM X0 Eagle Transmission Chain
Bottom Bracket:
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur
Front Derailleur:
Shifter: SRAM AXS Pod Rocker Controller
Freewheel/Cassette: SRAM XS-1295 Eagle Transmission Cassette 10-52T

Braking System

Brakes: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers, Magura Sensor Rotor (203mm, 2.5mm)
Brake Levers:

Wheels

Tyres: [F] Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready [R] Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Wheels/Rims: Amflow XMC-30 Mullet Version [F] Carbon, 29″, 30mm inner width, 28H, tubeless ready [R] Carbon, 27.5″, 30mm inner width, 32H, tubeless ready
Hubs: [F] Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt [R] Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD

Other

Handlebar: Amflow Enduro Carbon Handlebar, 40mm Rise, 800mm Width, 35mm Diameter, 5-degree upsweep, 9-degree backsweep
Stem: Amflow Mountain Bike Split Stem 35mm
Seat Post: Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm), M/L 190mm, XL 210mm
Saddle: Amflow Mountain Saddle Titanium

E-Bike

Drive Unit: Avinox M2S, Nominal 130N·m, Peak 150N·m
Battery: Avinox Integrated Battery: 700Wh
Display: Avinox Screen: 2-inch OLED Control Display
UI/Remote: Avinox Wireless Controllers: Right and left sides
Charger: Avinox Fast Charger: 12A/508W

Extras

Amflow Bottle Cage
Avinox Front Light
Rear Light
IoT Nano SIM Card
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Schwalbe Clik Valve Conversion Set
FOX 36 Mud Guard (Short)
5/10mm Dropper Post Travel Reducing Spacer
Torque Wrench
Clear Frame Protection Film
Shock Pump
Quick Start Guide

Geometry

Amflow 2027 PX Carbon Pro
