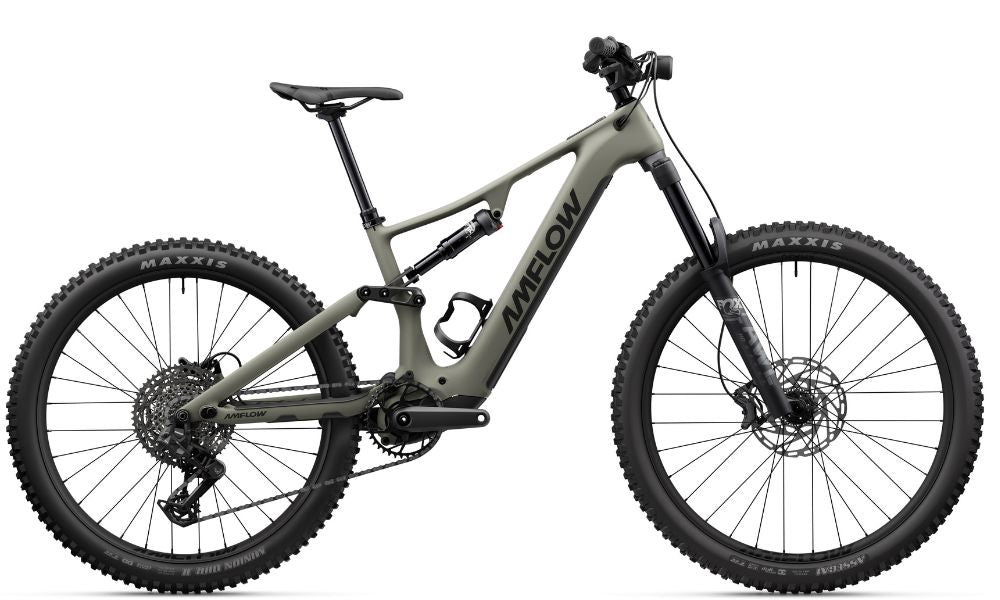

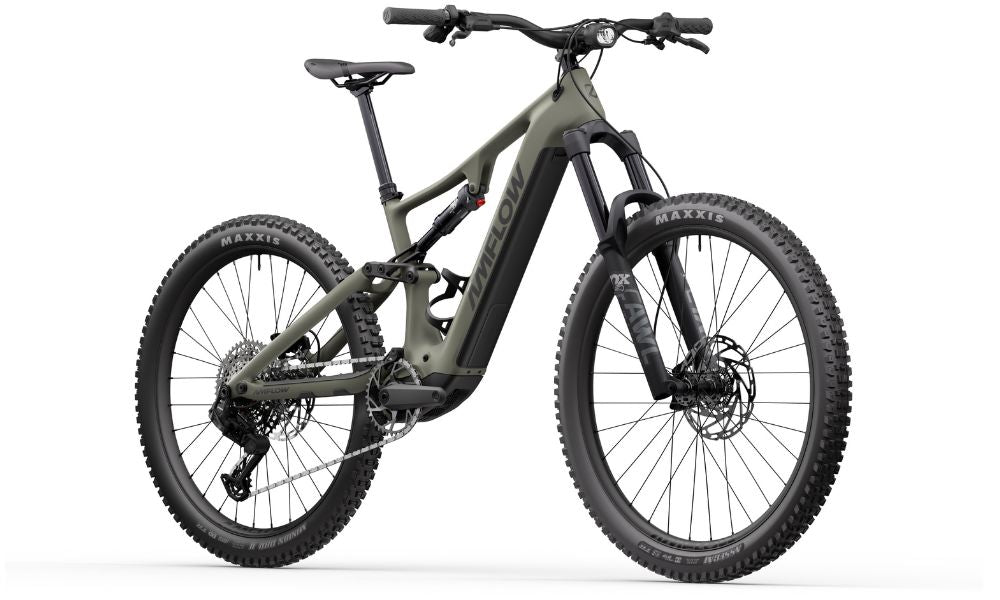

Amflow 2027 PR Carbon

Amflow 2027 PR Carbon

Please contact store for availability and PRE-ORDER on 04 499 9193 or velocitycycles10@gmail.com

Amflow PR - Master the Peak

Amflow PR combines striking aesthetics with a full-carbon frame, delivering up to 150N·m of torque and 1500W of peak power on configurations equipped with the Avinox M2S Drive Unit. With a swappable battery for extended rides, it gives you the freedom to ride farther and push your limits in style.

Geometry Design

Flexible Adjustment, Effortless Control

Geometry, Tuned to the Terrain

Amflow PR features a cutting-edge progressive geometry. With precision fine-tuning available for the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations [2]. This allows for precise adaptation to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.

Ultra-Light Carbon Fiber Frame, Easy Handling

The Amflow PR frame weighs around 2.9kg*, yet never compromises on strength or rigidity. It handles heavy demands with a light touch, making every ride through rough terrain more composed.

Removable Battery, Long-Lasting Range

An innovative slide rail design meets Battery Lock—delivering an exceptional balance of ease of use and security.

Quick Swap, Easy Recharge

Amflow PR supports independent battery removal for charging and quick swapping, flexibly solving the problem of finding charging stations and enabling rapid energy replenishment on long trips. While reducing maintenance costs, it also makes every departure more worry-free.

Drive Unit

Power, Smoothly Delivered

• Max Torque: 150N·m
• M2S Drive Unit Weight: 2.59kg
• Peak Power: 1500W

More Ride, Less Noise

Innovative compound planetary gears and helical gear design suppress the operating sound of the Avinox M2S Drive Unit to as low as 45dBA [4]. Mechanical noise is well controlled. On the trail, the sound of the wind and trail feedback become clearer, allowing you to focus on your rhythm and handling, fully immersing yourself in the joy of riding.

Natural Support, Peak Power

Power shouldn't be abrupt. The Avinox M2S Drive Unit utilizes multiple high-precision sensors and intelligent algorithms to adjust output in real-time, translating power into a natural, linear pedal feel. The Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. For the most challenging trails or steep inclines, activate Boost mode to instantly get 150N·m of torque and 1500W high-power assistance.

Avinox M2 Drive Unit

The drive unit is as light as 2.65kg, maintaining its lightweight advantage while achieving steady performance improvements. Compared to the previous generation, power density increased by 4.6%.

Touchscreen Control System

Smarter, From the Start

Offline Navigation, Made Smarter

The Avinox Ride app is compatible with third-party route imports and can convert historical tracks into route files (GPX/FIT/TCX formats), allowing one-click synchronization and management of ride data. Once the Control Display receives the data, it can navigate independently without a phone connection, providing real-time turn-by-turn guidance and off-course alerts.

Apple Find My Tracking

Integrated into the Apple Find My ecosystem, leveraging Apple's vast network to help you track your bike's location and battery level anytime via the "Find My"app. It also features a one-tap buzzer function to locate your bike.

Smart Heart Rate Control

No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety.

SmoothShift Fast Gear Changes

Deeply integrated with the SRAM electronic rear derailleur, the Avinox Drive System enables the SmoothShift function, allowing you to shift while coasting. Change gears continuously without pedaling to keep your rhythm in check.

Your Ride, More Connected

Amflow PR seamlessly integrates cutting-edge smart technology into your daily ride, delivering effortless convenience on every journey.

Premium Components

Premium Build, Uncompromising Performance

All-Round Reliability

Reliability You Can Trust

Specifications

Amflow 2027 PR Carbon

Frame

Size: M, L, XL, XXL
Colour: Moss Green
Frame: Amflow PR Carbon Frame, 40 adjustable geometry configurations *, Compatible with 27.5″ and 29″ rear wheels
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
Fork: FOX AWL HD Sport (MY 2027), 160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Shock: FOX Float Rhythm (MY 2027), custom tune, LSR adjustment, 210×55mm, air shock

Drivetrain

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Pedals:
Chain: SRAM Eagle 70 Transmission Flattop Chain
Bottom Bracket:
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Front Derailleur:
Shifter: SRAM AXS Pod Controller
Freewheel/Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T

Braking System

Brakes: Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom, Tektro Sensor Rotor (203mm, 2.3mm)
Brake Levers:

Wheels

Tyres: [F] Maxxis Assegai, 29.0×2.50 M356RU 3C MaxxGrip/EXO+/TR [R] Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR
Wheels/Rims: Amflow XMA-30 Mullet Version [F] Alloy, 29″, 30mm inner width, 32H, tubeless ready [R] Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Hubs: [F] Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt [R] Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG

Other

Handlebar: Amflow Enduro Alloy Handlebar, 40mm Rise, 800mm Width, 35mm Diameter, 5-degree upsweep, 9-degree backsweep
Stem: Amflow Mountain Bike Split Stem 35mm
Seat Post: Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm), M/L 190mm, XL 210mm, XXL: 230mm
Saddle: Amflow Mountain Saddle

E-Bike

Drive Unit: Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m
Battery: Avinox Removable Battery: 800Wh
Display: Avinox Screen: 2-inch OLED Control Display
UI/Remote: Avinox Wireless Controllers: Right and left sides
Charger: Avinox Fast Charger: 4A/168W

Extras

Amflow Bottle Cage
Avinox Front Light
Rear Light
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Removable Battery Keys × 2
5/10mm Dropper Post Travel Reducing Spacer
Torque Wrench
Clear Frame Protection Film
Shock Pump
Quick Start Guide

Geomerty

Amflow 2027 PR Carbon
