Home » Liv 2025 Avail AR 2

Liv 2025 Avail AR 2

(0)
$1,874.00
-25% $2,499.00 $1,874.00
Out of stock
Size
Colour
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

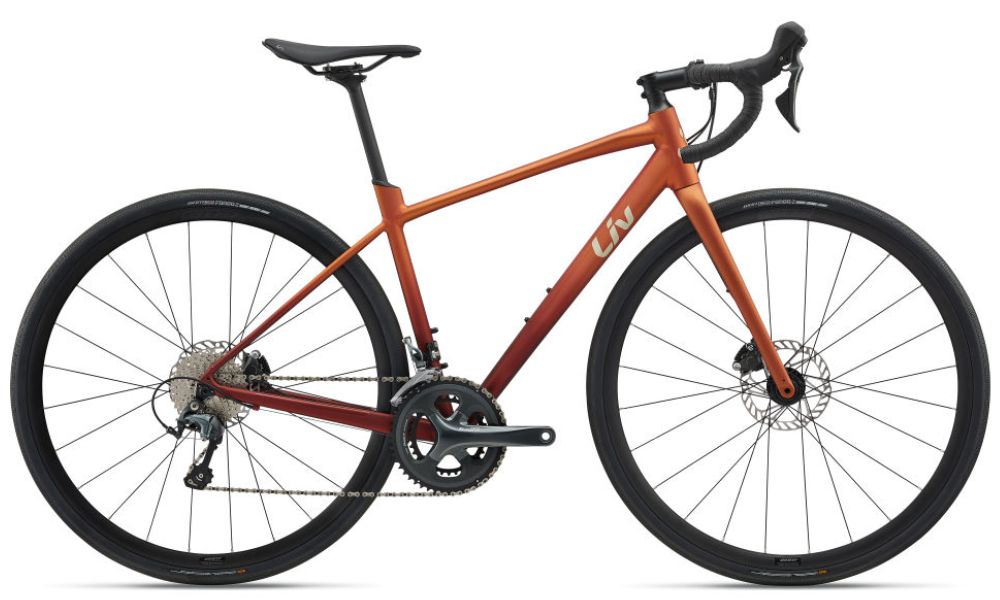

Liv 2025 Avail AR 2

Specifications

Liv 2025 Avail AR 2

Frame

Colour: Solar Flare
Frame: ALUXX-Grade aluminium, 12x142mm thru-axle, disc
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc
Shock: NA

Drivetrain

Crankset: Shimano Tiagra, 34/50 XS:165mm, S:170mm, M:170mm, L:172.5mm
Pedals: NA
Chain: KMC X10-1
Bottom Bracket: Cartridge
Rear Derailleur: Shimano Tiagra GS
Front Derailleur: Shimano Tiagra
Derailleur Shifter: Shimano Tiagra
Freewheel/Cassette: Shimano Tiagra, 10-speed, 11x34

Braking System

Brakes: Shimano Tiagra hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano Tiagra

Wheels

Tyres: Giant Gavia Fondo 2, 700x32c, tubeless
Wheels/Rims: Giant S-R2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle

Other

Handlebar: Liv Connect, 31.8mm XS:38cm, S:40cm, M:40cm, L:42cm
Stem: Giant Sport XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm
Saddle: Liv Approach
Seat Post: Giant D-Fuse, composite, 14mm offset

Geomerty

Liv 2025 Avail AR 2

  • XXS
      145 cm to 156 cm
  • XS
      153 cm to 162 cm
  • S
      158 cm to 169 cm
  • M
      165 cm to 174 cm
  • L
      171 cm to 182 cm

    XXS XS S M L
A Seat Tube Length (MM) 375 410 445 480 515
B Seat Tube Angle 75.0° 74.5° 74.5° 74.0° 74.0°
C Top Tube Length (MM) 502 515 525 540 555
D Head Tube Length (MM) 103 118 138 158 178
E Head Tube Angle 70.0° 70.5° 71.5° 72.0° 72.0°
F Fork Rake (MM) 53 53 53 53 53
G Trail (MM) 72.8 69.5 62.9 59.6 59.6
H Wheelbase (MM) 994 999 1001 1006 1022
I Chain Stay Length (MM) 422 422 422 422 422
J Bottom Bracket Drop (MM) 80 80 80 80 80
K Stack (MM) 522 538 561 582 601
L Reach (MM) 362 366 369 373 383
M Stand Over Height (MM) 653 681 709 736 766
O Stem Length (MM) 70 70 80 90 90
P Crank Length (MM) 165 165 170 170 172
Q Wheel Size 700C 700C 700C 700C 700C
