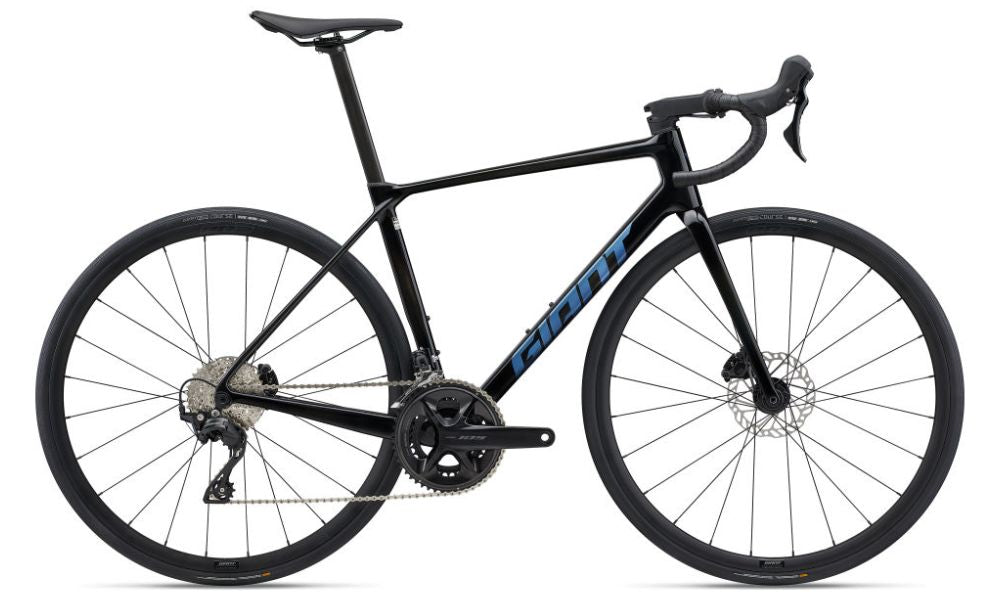

Giant 2025 TCR Advanced 2-PC
Couldn't load pickup availability
Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!
Giant 2025 TCR Advanced 2-PC
BUILT TO GO FASTER. WHETHER YOU’RE CLIMBING, CORNERING OR LAUNCHING AN ATTACK, THIS ALL-NEW COMPOSITE ROAD RACER IS MADE FOR THAT MOMENT. LIGHTWEIGHT, EFFICIENT, AND INTEGRATED FOR SPEED, IT’S ENGINEERED TO GIVE YOU A COMPETITIVE EDGE IN EVERY SITUATION.
SYSTEM OPTIMIZATION
The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.
WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
INTEGRATED AERODYNAMICS
All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.
Specifications
Giant 2025 TCR Advanced 2-PC
Frame
Colour: Carbon
Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Shock: NA
Drivetrain
Crankset: Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Pedals: Chain: KMC X12L-1
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano 105
Front Derailleur: Shimano 105
Derailleur Shifter: Shimano 105
Freewheel/Cassette: Shimano 105, 11-speed, 11x34
Wheels
Tyres: [F] and [R] Giant Gavia Course 1, tubeless, 700x28c (28mm), folding
Wheels/Rims: Giant P-R2, [F]36mm, [R]36mm
Hubs: [F] and [R] 12mm thru-axle
Braking System
Brakes: Shimano 105 hydraulic, Shimano rotors [F]160mm, [R]140mm
Brake Levers: Shimano 105 hydraulic
Other
Handlebar: Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Stem: Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Saddle: Giant Approach
Seat Post: Giant Variant, composite, -5/+15mm offset
Geometry
Giant 2025 TCR Advanced 2-PC
-
- XS
-
157 cm
169 cm
-
- S
-
165 cm 175 cm
-
- M
-
171 cm 181 cm
-
- ML
-
177 cm 187 cm
-
- L
-
183 cm 193 cm
-
- XL
-
189 cm 199 cm
| XS | S | M | ML | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 425 | 445 | 470 | 500 | 530 | 560 |
| B | SEAT TUBE ANGLE | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | TOP TUBE LENGTH (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| D | HEAD TUBE LENGTH (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| E | HEAD TUBE ANGLE | 71.0° | 72.3° | 73.5° | 73.0° | 73.0° | 72.5° |
| F | FORK RAKE (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL (mm) | 72.0 | 64.0 | 59.0 | 59.0 | 59.0 | 59.0 |
| H | WHEELBASE (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I | CHAIN STAY LENGTH (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP (mm) | 72 | 69 | 69 | 67 | 67 | 67 |
| K | STACK (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| L | REACH (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| M | STAND OVER HEIGHT (mm) | 703 | 722 | 743 | 771 | 798 | 822 |
| O | STEM LENGTH (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| P | CRANK LENGTH (mm) | 170 | 170 | 172 | 172 | 175 | 175 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
