Giant 2024 Talon 3

(0)
$891.00
-15% $1,049.00 $891.00
Out of stock
Size
Colour
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

Giant 2024 Talon 3

PUSH THE PACE ON CLIMBS, LET LOOSE ON DESCENTS. THIS ALUMINUM HARDTAIL WITH A PLUSH SUSPENSION FORK DELIVERS BALANCED, CONFIDENT HANDLING ON THE TRAIL.

Proven alloy performance

ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.

Balance and stability

Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).

XC control

Suspension fork offers either 80mm or 100mm of smooth travel for added control on XC terrain.

Specifications

Giant 2024 Talon 3

Frame

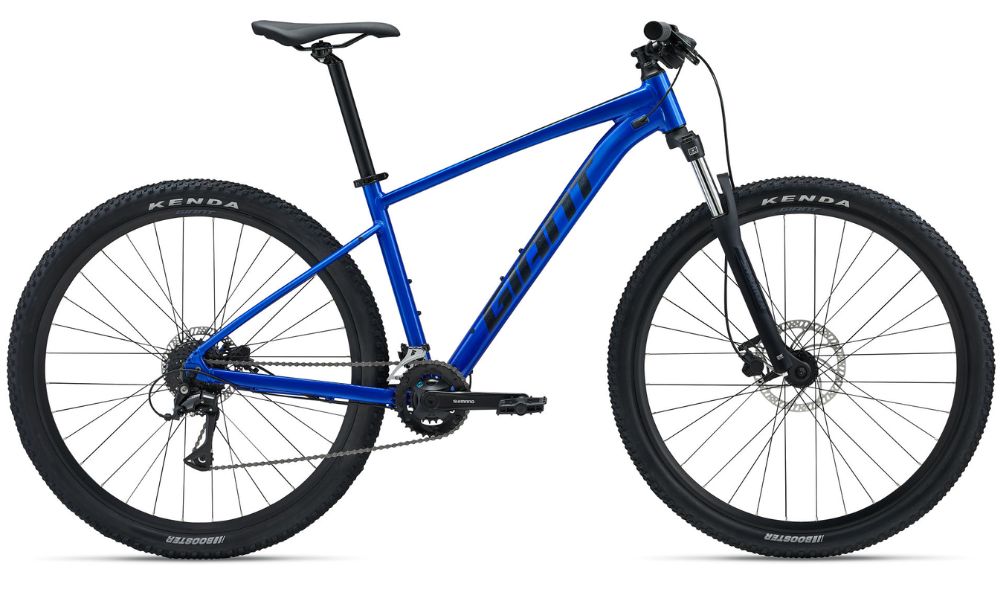

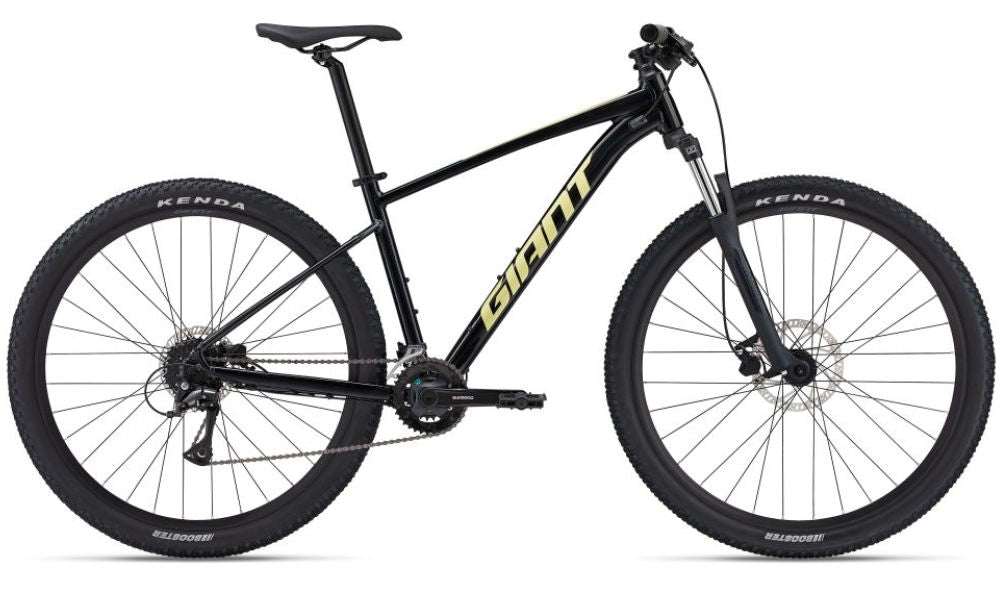

Colour: Metallic Black, Cobalt
Frame: ALUXX-Grade aluminium, disc
Fork: SR Suntour XCE, QR, alloy steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
Shock: NA



Drivetrain

Crankset: Shimano FC-M315, 22/36 XS: 170mm (27.5) S: 170mm (27.5) / 170mm (29) M: 175mm (29), L: 175mm (29) XL: 175mm (29)
Pedals:
Chain: KMC 8.3
Bottom Bracket: Cartridge
Rear Derailleur: Shimano Altus M310
Front Derailleur: microSHIFT FD-M282
Derailleur Shifter: microSHIFT TS39, 2x8
Freewheel/Cassette: Shimano Deore HG200, 12x32



Wheels

Tyres: [F] and [R] Kenda Booster 27.5 or 29x2.2", wire bead
Wheels/Rims: Giant GX03V 29 or 27.5, alloy, double wall
Hubs: Alloy, sealed



Braking System

Brakes: Tektro HDM275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro HDM275



Other

Handlebar: Giant Connect Trail, 31.8mm
Stem: Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
Saddle: Giant
Seat Post: Giant Sport, 30.9mm



Geometry

Giant 2024 Talon 3

  • S (29")
      163 cm to 172 cm
  • M (29")
      169 cm to 179 cm
  • L (29")
      176 cm to 186 cm
  • XL (29")
      183 cm to 193 cm
  • XXL (29")
      190 cm to 200 cm
  • XS (27.5")
      155 cm to 166 cm
  • S (27.5")
      163 cm to 172 cm
  • M (27.5")
      169 cm to 179 cm
  • L (27.5")
      176 cm to 186 cm

    S (29") M (29") L (29") XL (29") XXL (29") XS (27.5") S (27.5") M (27.5") L (27.5")
A SEAT TUBE LENGTH (mm) 390 440 490 535 565 350 385 430 490
B SEAT TUBE ANGLE 74.0° 74.0° 74.0° 74.0° 74.0° 74.0° 74.0° 74.0° 74.0°
C TOP TUBE LENGTH (mm) 577 599 620 639 658 544 569 597 618
D HEAD TUBE LENGTH (mm) 95 105 125 140 155 95 115 130 155
E HEAD TUBE ANGLE 68.5° 68.5° 68.5° 68.5° 68.5° 67.5° 67.5° 67.5° 67.5°
F FORK RAKE (mm) 51 51 51 51 51 42 42 42 42
G TRAIL (mm) 94.0 94.0 94.0 94.0 94.0 103.0 103.0 103.0 103.0
H WHEELBASE (mm) 1126 1150 1172 1192 1213 1079 1106 1137 1162
I CHAIN STAY LENGTH (mm) 455 455 455 455 455 440 440 440 440
J BOTTOM BRACKET DROP (mm) 55 55 55 55 55 45 45 45 45
K STACK (mm) 602 611 630 644 658 533 571 598 621
L REACH (mm) 404 424 439 454 469 385 405 425 440
M STAND OVER HEIGHT (mm) 732 766 805 839 856 686 711 748 794
N HANDLEBAR WIDTH (mm) 780 780 780 780 780 780 780 780 780
O STEM LENGTH (mm) 50 60 70 80 90 40 50 60 70
P CRANK LENGTH (mm) 170 175 175 175 175 165 170 175 175
Q WHEEL SIZE 29 29 29 29 29 27 27 27 27
Q WHEEL SIZE 29 29 29 29 29 27 27 27 27
