Home » Merida 2026 eONE SIXTY Limited

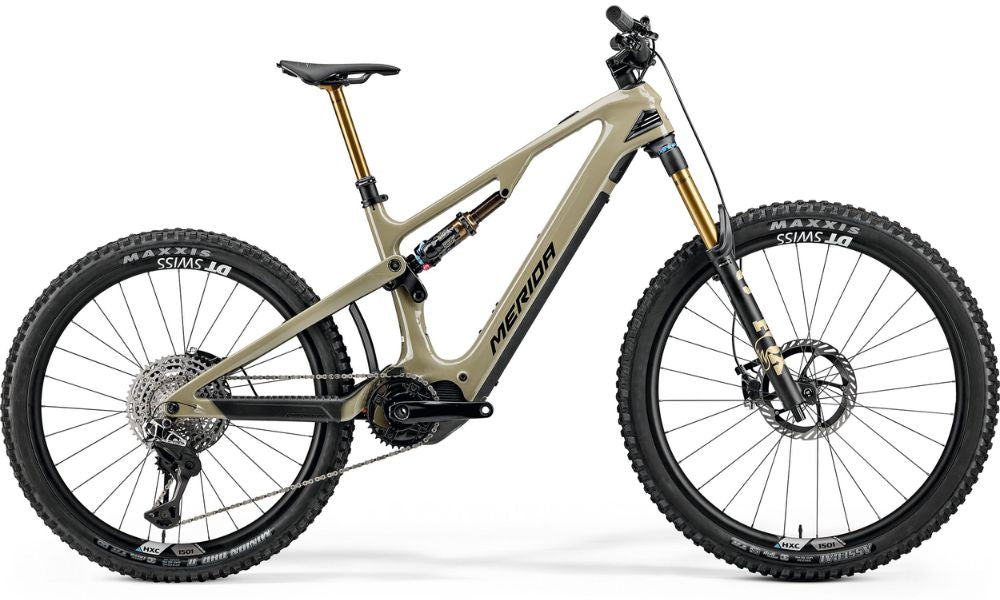

Merida 2026 eONE SIXTY Limited

(0)
$16,999.00
Only 4 left
Low inventory - Hurry up!
Size
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride. No tools or extra setup required!

Merida 2026 eONE SIXTY Limited

Full support, minimum weight. We've delivered the ultimate superlight enduro e-bike by taking our high-performance carbon frame and shaving every gram possible via careful kit selection to deliver full-power punch at light-support weight.

Full-power punch at light-support weight. We've taken our hard-hitting carbon fibre e-enduro frame and given it a full-factory lightweight treatment while still delivering 160 mm of plush travel at either end. A Fox 36 Factory fork and Float X rear shock can take care of rough and rowdy terrain while minimising mass and the tough but lightweight carbon fibre DT Swiss HXC1501 wheelset adds a new edge to the acceleration of the Shimano EP801 drive unit. Add in a full-size 600 Wh battery and the option of a 360 Wh range extender and this is one super-lightweight trail ripper.

Lightweight or full power? How about both? The eONE-SIXTY CF combines an enduro-ready lightweight full carbon chassis with a full-support motor, 600 Wh battery and an optional 360 Wh range extender, so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's designed to be perfectly at home on a race track or just hitting the trails on repeat. We've also married the award-winning FAST kinematic suspension and AGILOMETER sizing of our ONE-SIXTY enduro bike with our proven e-bike heritage, so it's quite the thoroughbred bloodline. Our low-maintenance flexstay suspension offers size-tuned progression to maximise performance for all sizes of riders, plus you can run it with the latest coil shocks. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focused full 29er setup without messing up the geometry, thanks to our flip chip design. We've created a geometry that can take on the toughest enduro trails while maintaining a playful and fun character. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whatever suits you.

  • Lightweight full carbon fibre CF4 frame with 160 mm rear wheel travel
  • Fox 36 Factory fork with 160 mm travel and Float X Factory rear shock
  • Wireless, race-ready Shimano XTR Di2 drivetrain
  • Integrated 600 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit
  • Tough yet light DT Swiss HXC 1501 carbon fibre wheelset
  • Reach-based AGILOMETER sizing system with Fox Transfer Factory dropper post
Specifications

Merida 2026 eONE SIXTY Limited

Frame

Size: Short, Mid, Long
Colour: Oak Bark/Golden Black
Frame: eONE-SIXTY CF III, MAT carbon, 160 STR, 29” x 2,6” max. WHS, 148x12 AST, intube, max. 600 Wh,
Fork: Fox 36 Float Factory, Air, 160 STR, Tapered, 44mm fork offset, 29x2.6" max WHS,
Shock: Fox Float X Factory, 2 Pos Lever

Drivetrain

Crankset: FSA 1x Steel Chainring, 36t
Pedals:
Chain: Shimano XTR M9100,
Bottom Bracket:
Rear Derailleur: Shimano XTR Di2,
Front Derailleur:
Shifter: Shimano XTR Di2 M9250,
Freewheel/Cassette: Shimano XTR, 10-51,12,

Braking System

Brakes: Shimano XTR, 4 piston
Brake Levers:

Wheels

Tyres: [F] Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, [R] Maxxis Minion DHR II, 27.5x2.4 ", fold, TR EXO+ 3C MaxxTerra,
Wheels/Rims: DT Swiss HXC 1501, 110x15 WHF, 148x12 WHR, 30 IWR, CenterLock, SRAM XD, MAT carbon, Tubeless ready (tubeless tape and valves included)
Hubs: [F] [R]

Other

Handlebar: Race Face Era, 780 WHB
Stem: MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount,
Seat Post: Fox Transfer Factory Series, 34,9 DSP, 0 SSB
Saddle: Prologo Nago R4 Nack 147mm, V-mount adapter, incl. MERIDA minitool,

E-Bike

Drive Unit: Shimano EP801, 85Nm
Battery: Trendpower TPS-C15-58SD, 600Wh integrated
Display: Shimano SC-EM800,
UI/Remote:
Charger:

Extras

Fenders:
Kickstand:
Lights: [F] CG-119PG-BLACK(1), [R] CG-404RG-BLK,

Geometry

Merida 2026 eONE SIXTY Limited

Bike Frame Geometry Image

Frame Size XShort Short Mid Long XLong
Tyre Sizes 29/27.5" 29/27.5" 29/27.5" 29/27.5" 29/27.5"
ST seat tube [mm] 400 410 425 445 465
TT top tube [mm] 546 567 589 610 632
CS chain stay length [mm] 446 446 446 446 446
HTA head tube angle [°] 64.4 64.4 64.4 64.4 64.4
STA seat tube angle [°] 78.5° 78.5° 78.4° 78.4° 78.3°
BD bottom bracket drop [mm] 9 9 9 9 9
HT head tube [mm] 100 105 110 115 120
FL fork length [mm] 581 581 581 581 581
R reach [mm] 419 439 459 479 499
S stack [mm] 624 628 633 637 642
WB wheel base [mm] 1199 1221 1244 1266 1288
SH stand over height [mm] 776 770 765 760 755
